Solenoid Body Assembly: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission fluid pan, gasket and filter. For additional information, refer to Fluid Pan, Gasket and Filter .
    2. Fig 1: Identifying Solenoid Body Electrical Connector
    G03889052Courtesy of FORD MOTOR CO.
  2. Disconnect the solenoid body electrical connector.

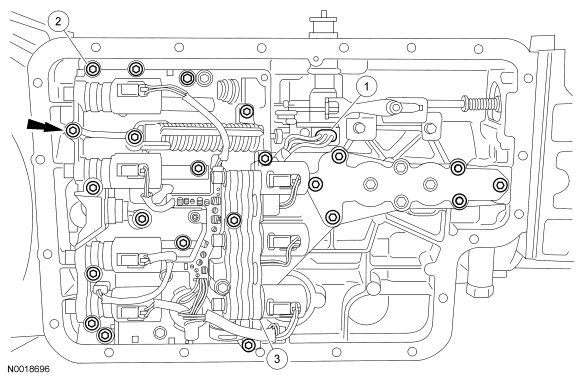

    3. Fig 2: Identifying Solenoid Body Bolts
    GF0006794Courtesy of FORD MOTOR CO.
    NOTE: While lowering the solenoid body, the manual valve may fall out of the solenoid body.
  3. Remove the solenoid body.
    1. Disconnect the transmission range (TR) sensor electrical connector.
    2. Remove the solenoid body bolts.
    3. Remove the solenoid body.
    4. Fig 3: View Of Solenoid Body Gasket
    G03889054Courtesy of FORD MOTOR CO.
  4. Remove the solenoid body gasket.
