ABS Sensor Block: Service and Repair

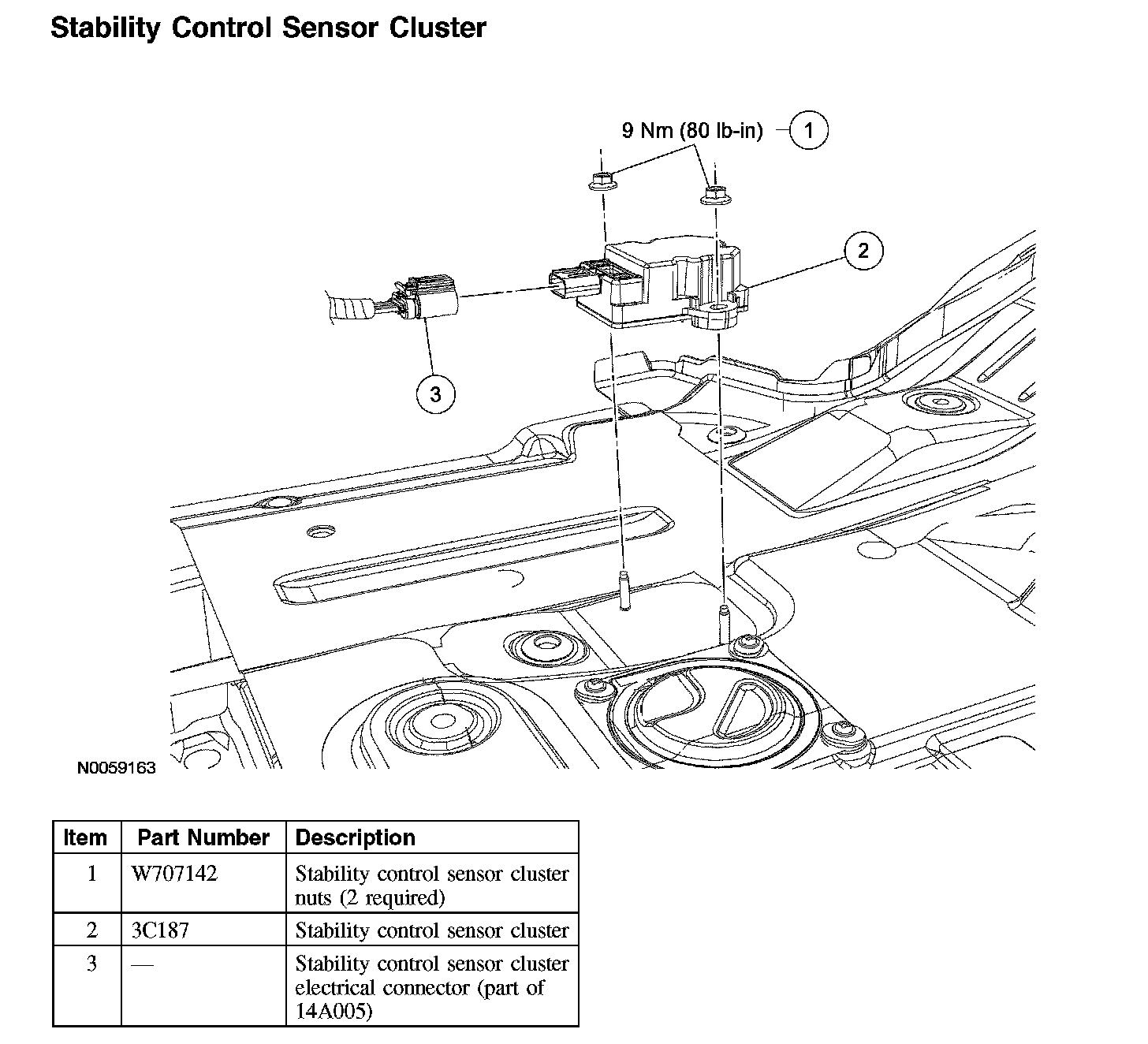

Stability Control Sensor Cluster

Stability Control Sensor Cluster:

Removal and Installation

NOTE: When installing a new stability control sensor cluster, the sensor cluster must be calibrated. Follow the scan tool directions for the calibration procedures.

1. Disconnect the battery ground cable. For additional information, refer to Battery.

2. NOTE: The sensor is located on the RH side of the vehicle, under the rear seat.

Remove the rear seat. For additional information, refer to Seats.
3. Disconnect the stability control sensor cluster electrical connector.
4. Remove the 2 stability control sensor cluster nuts and the stability control sensor cluster.
^ To install, tighten to 9 Nm (80 inch lbs).
5. To install, reverse the removal procedure.
