Traction Control Switch: Service and Repair

Stability/Traction Control Switch

Removal and Installation





1. Disconnect the battery ground cable. For additional information, refer to Battery.

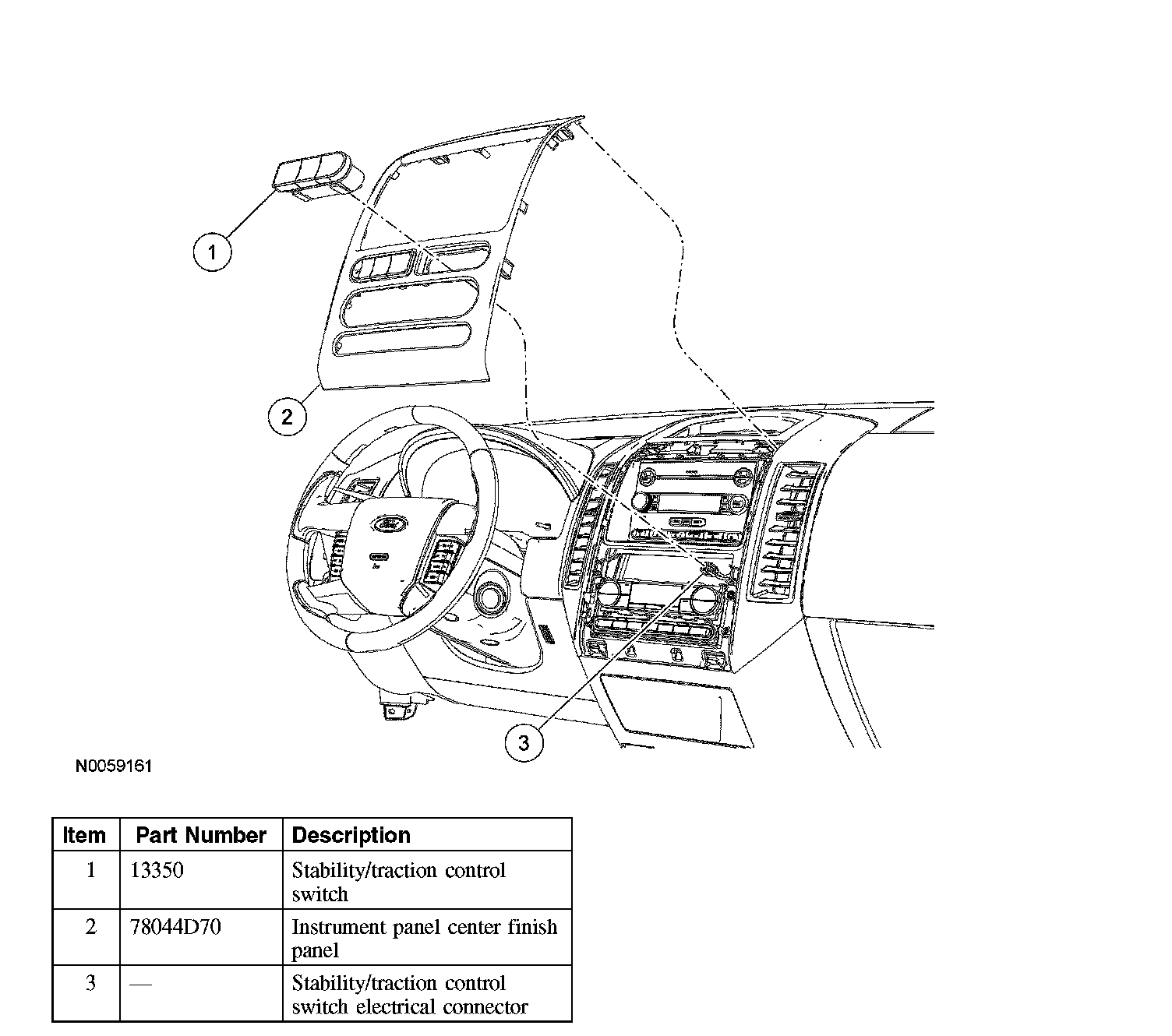

2. Position the instrument panel center finish panel away from the instrument panel.
3. Disconnect the stability/traction control switch electrical connector.

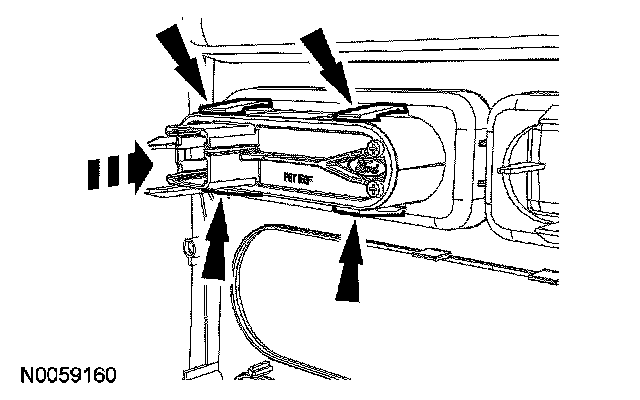

4. Depress the 4 tabs and remove the stability/traction control switch from the instrument panel center finish panel.





5. To install, reverse the removal procedure.
