Cabin Temperature Sensor / Switch: Service and Repair

IN-VEHICLE TEMPERATURE SENSOR







Removal and Installation

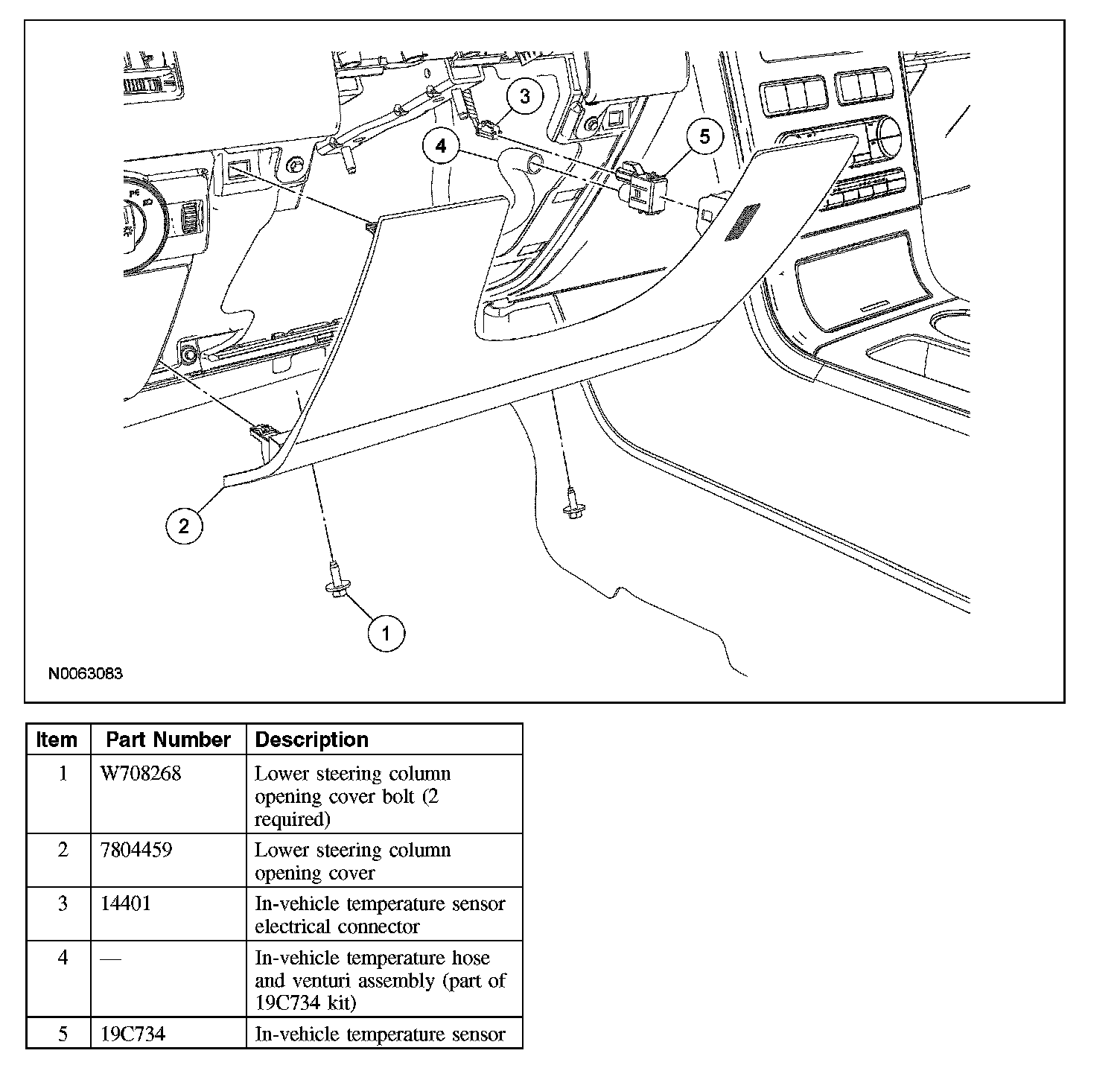

1. Remove the 2 lower steering column opening cover bolts.
2. Detach the lower steering column opening cover.
3. Disconnect the in-vehicle temperature sensor aspirator hose.
4. Disconnect the in-vehicle temperature sensor electrical connector.
5. Release the 2 in-vehicle temperature sensor clips and remove the in-vehicle temperature sensor.

6. NOTE: The in-vehicle temperature sensor hose and venturi assembly can be accessed from below the driver side of the instrument panel.

Remove the in-vehicle temperature sensor hose and venturi assembly.

7. To install, reverse the removal procedure.
