Electronic Brake Control Module: Service and Repair

Anti-Lock Brake System (ABS) Module

Anti-Lock Brake System (ABS) Module:

Removal and Installation

CAUTION: Electronic modules are sensitive to electrical charges. The ABS module can be damaged if exposed to these charges.

CAUTION: Do not allow any brake fluid or foreign material to enter the mating side of the ABS module or damage to the solenoids can occur.

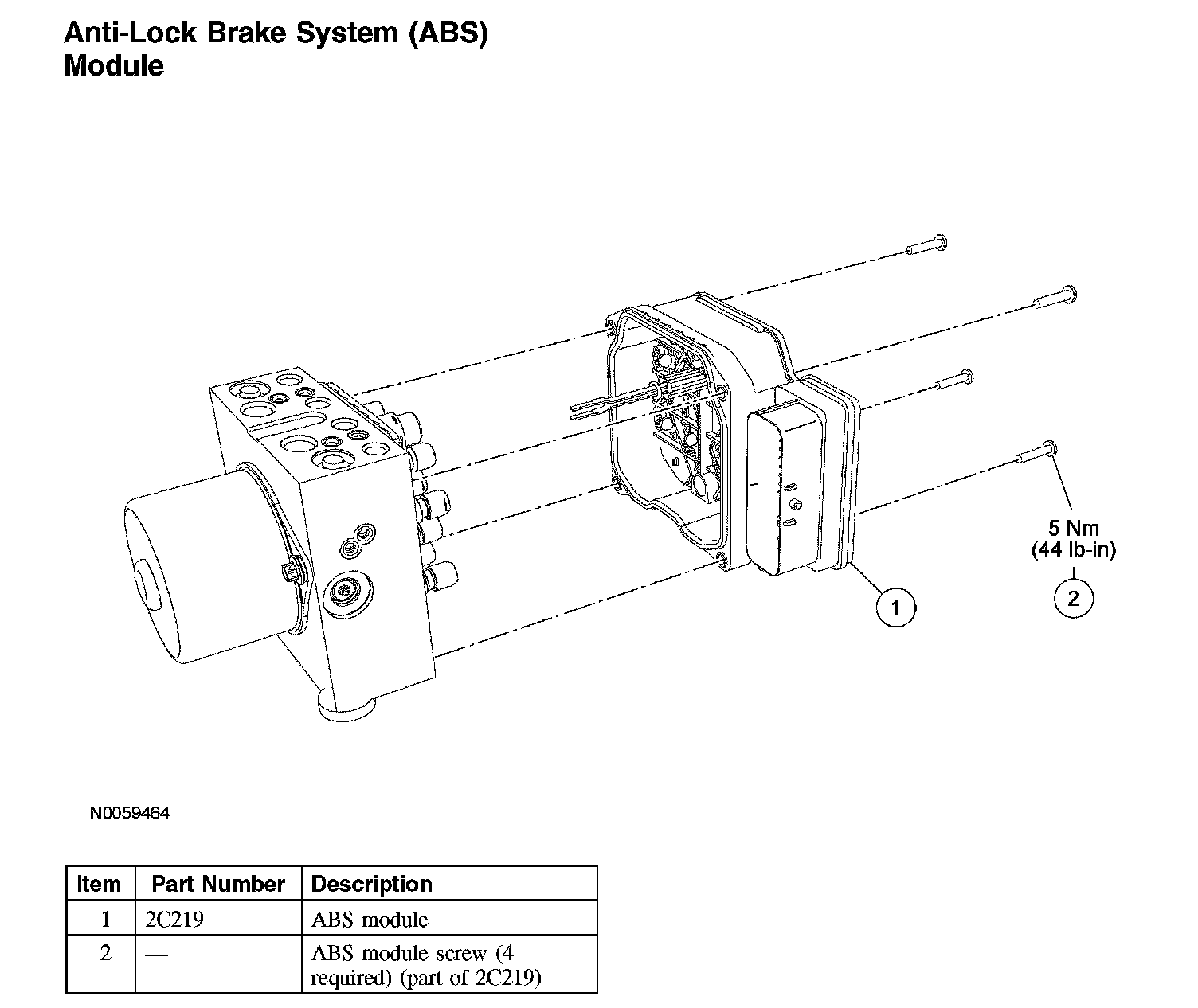

1. Remove the hydraulic control unit (HCU).
2. Remove the 4 ABS module screws and the ABS module.
^ To install, tighten to 5 Nm (44 inch lbs).

3. NOTE: Visually inspect the ABS module terminals for damage before installation.

To install, reverse the removal procedure.
