OCCUPANT CLASSIFICATION MODULE - MANUAL SEAT TRACK







Removal and Installation

WARNING:
- Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
- To reduce the risk of personal injury, do not use any memory saver devices.

CAUTION: Use care when handling the seat and track assembly. Dropping the assembly or sitting on a seat not secured in the vehicle may result in damaged components.

NOTE:
- The air bag warning indicator illuminates when the restraints control module (RCM) fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- The supplemental restraint system (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.
- Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and carry out the diagnostic procedure again.

1. Depower the system.

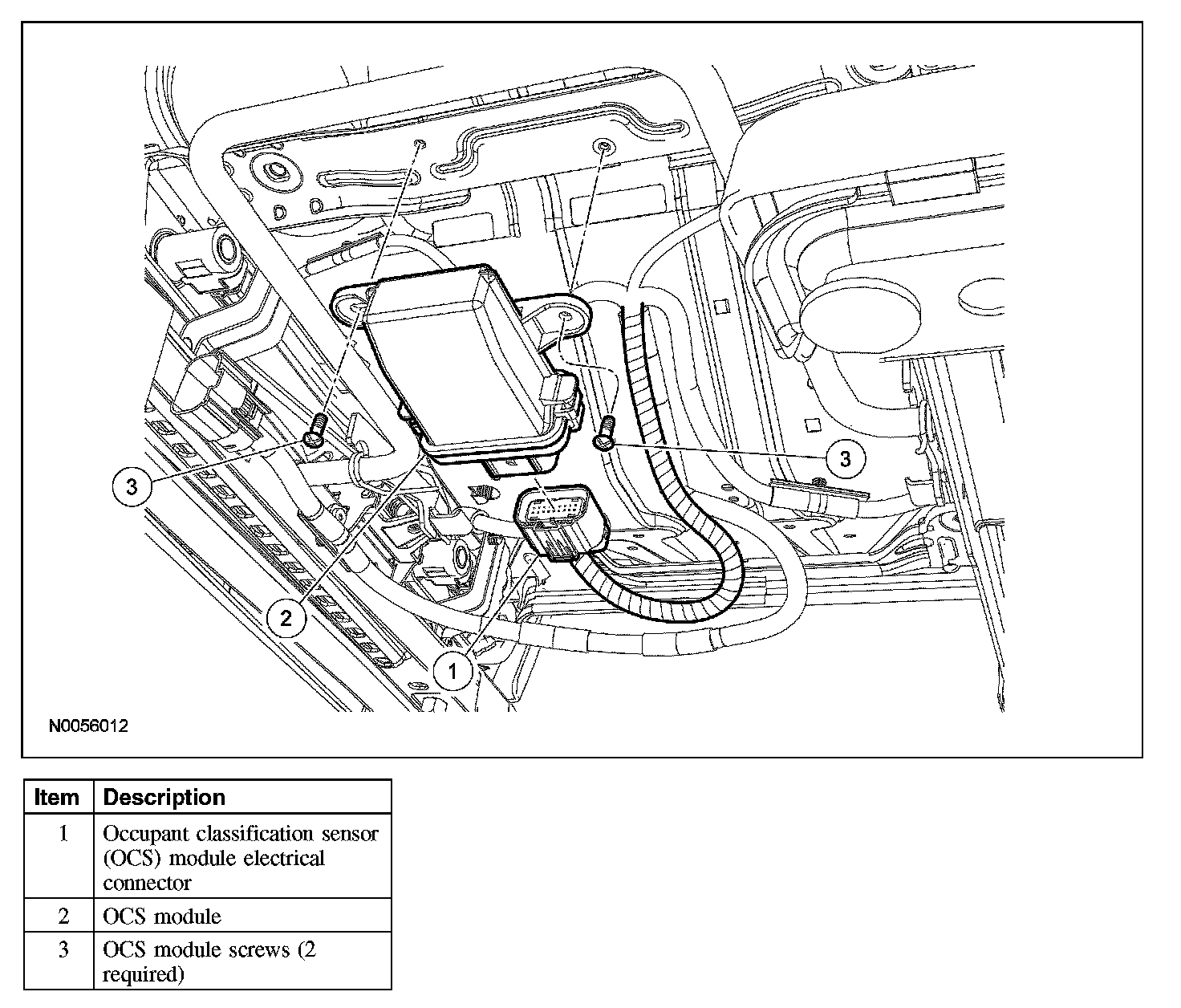

2. Disconnect the occupant classification sensor (OCS) module electrical connector.
3. Remove the 2 screws and the OCS module.
4. To install, reverse the removal procedure.
5. Install the passenger seat and repower the supplemental restraints system (SRS). Do not prove out the SRS at this time.
6. Carry out the appropriate procedure after installation of an OCS system component.
- If installing the original OCS system component, carry out the Zero Seat Weight Test and prove out the SRS. Component Tests and General Diagnostics
- If installing a new OCS system component, carry out the System Reset procedure and prove out the SRS. Programming and Relearning
