Rear Bumper

BUMPER - EXPLODED VIEW, REAR

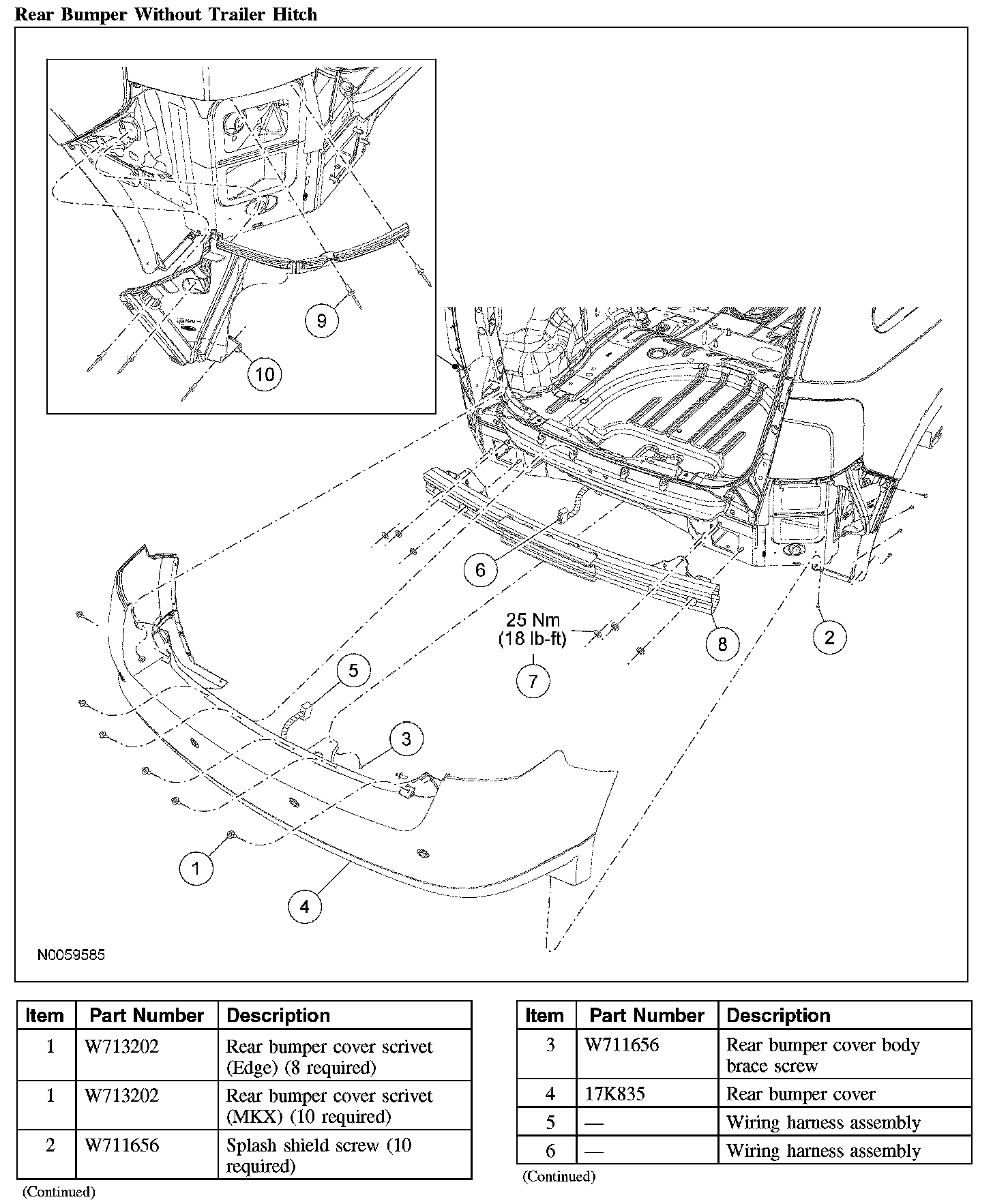

Rear Bumper Without Trailer Hitch (Part 1):

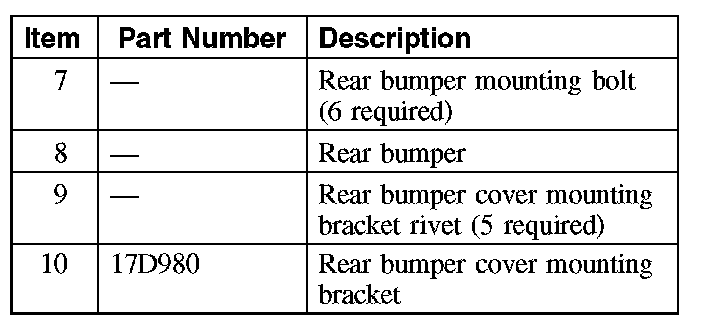

Rear Bumper Without Trailer Hitch (Part 2):

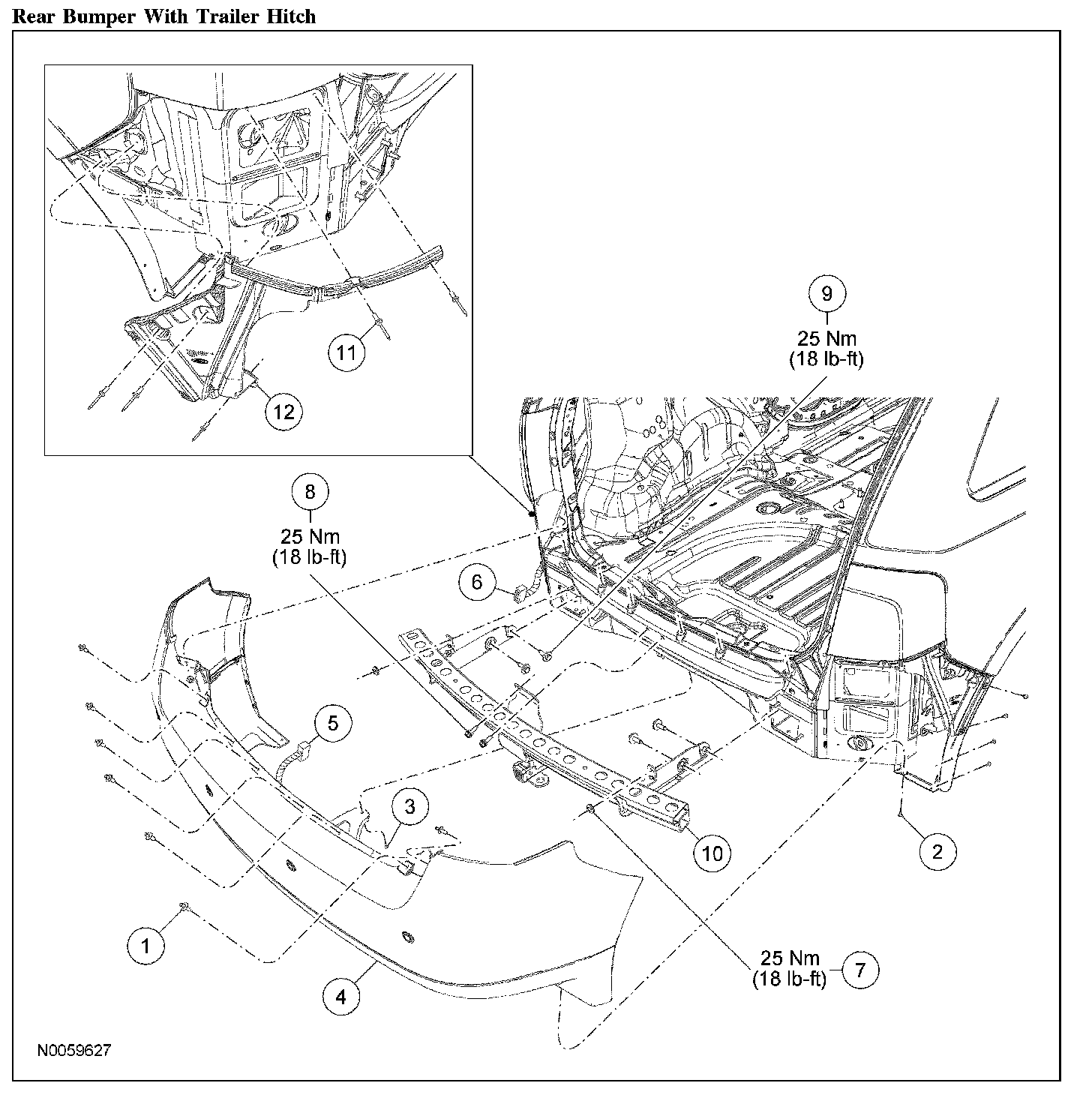

Rear Bumper With Trailer Hitch (Part 1):

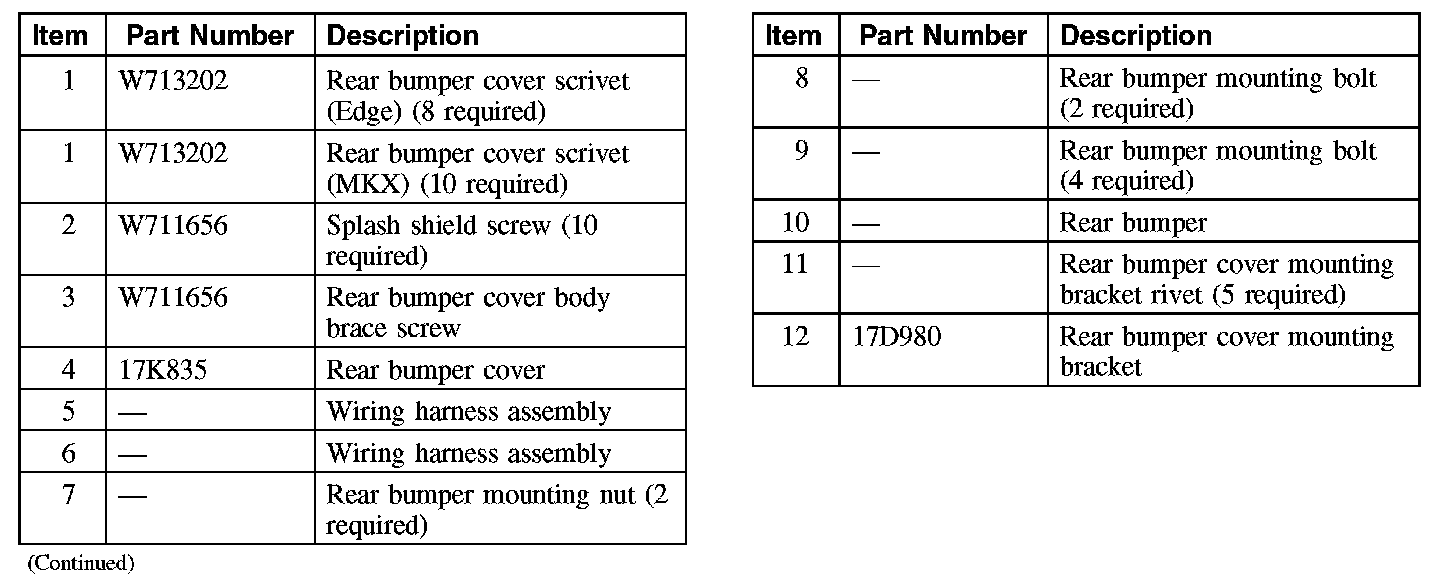

Rear Bumper With Trailer Hitch (Part 2):

Removal and Installation
1. For additional information, refer to the procedures.
