Power Mirror Switch: Service and Repair

EXTERIOR MIRROR CONTROL SWITCH







Removal and Installation

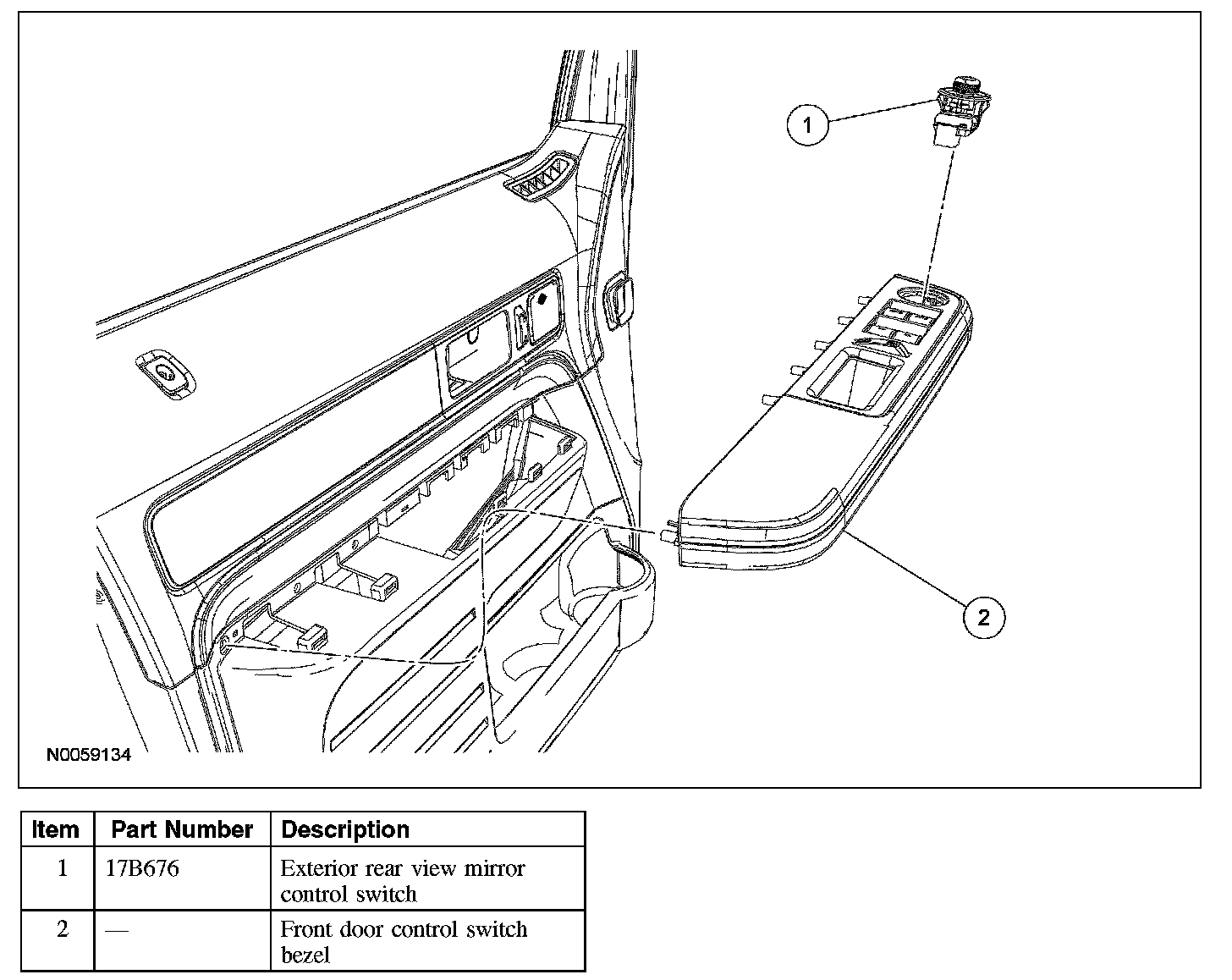

1. Remove the front door control switch bezel.







2. Remove the exterior mirror control switch.

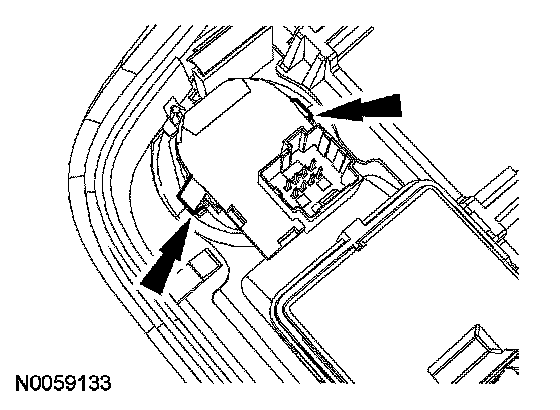

- Depress the 2 locking tabs.
- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
