Tests DX: Engine Coolant Temperature (ECT) Sensor

PINPOINT TEST DX: ENGINE COOLANT TEMPERATURE (ECT) SENSOR

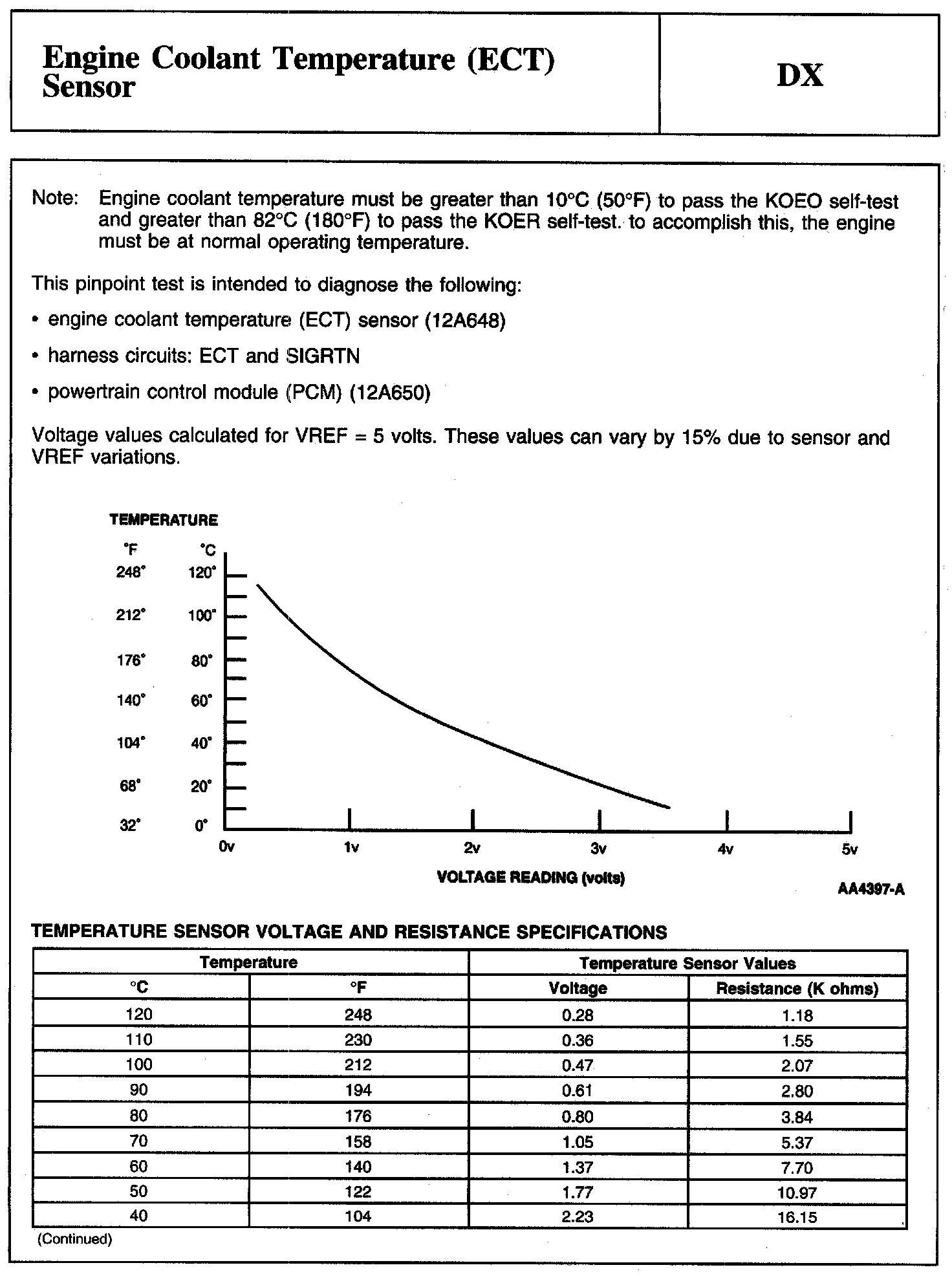

Graph And Table:

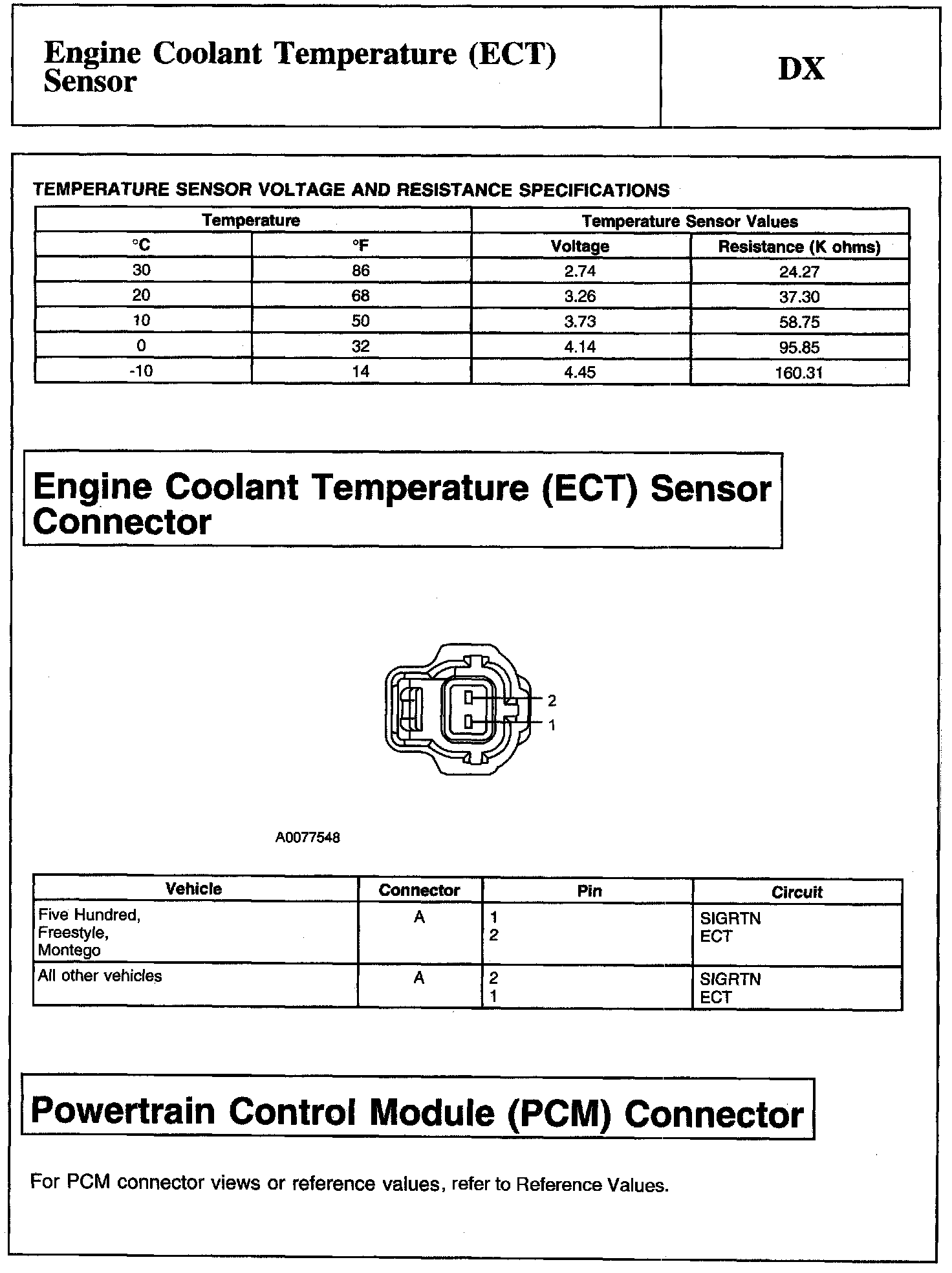

Table, Engine Coolant Temperature (ECT) Sensor Connector And Powertrain Control Module (PCM) Connector:

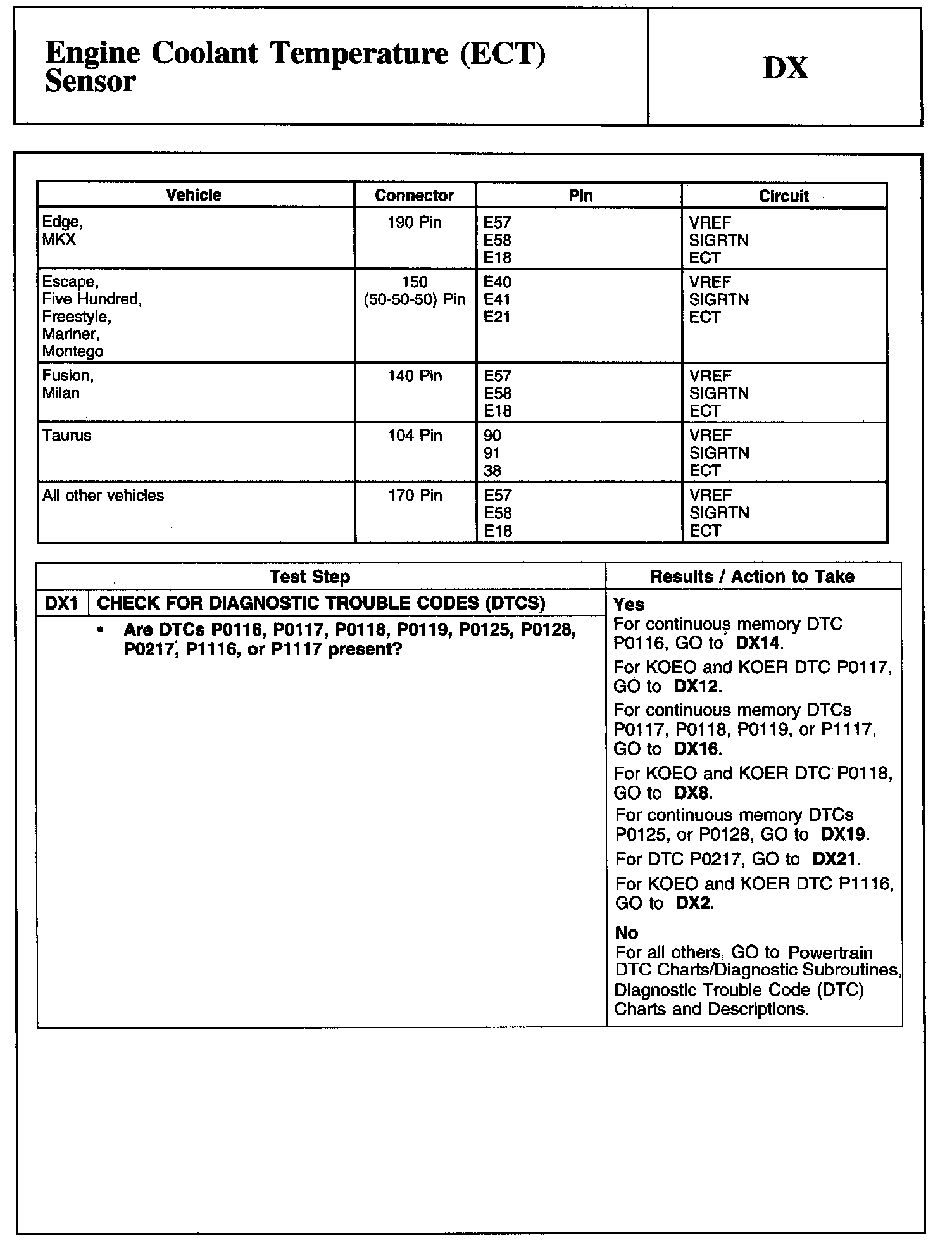

DX1:

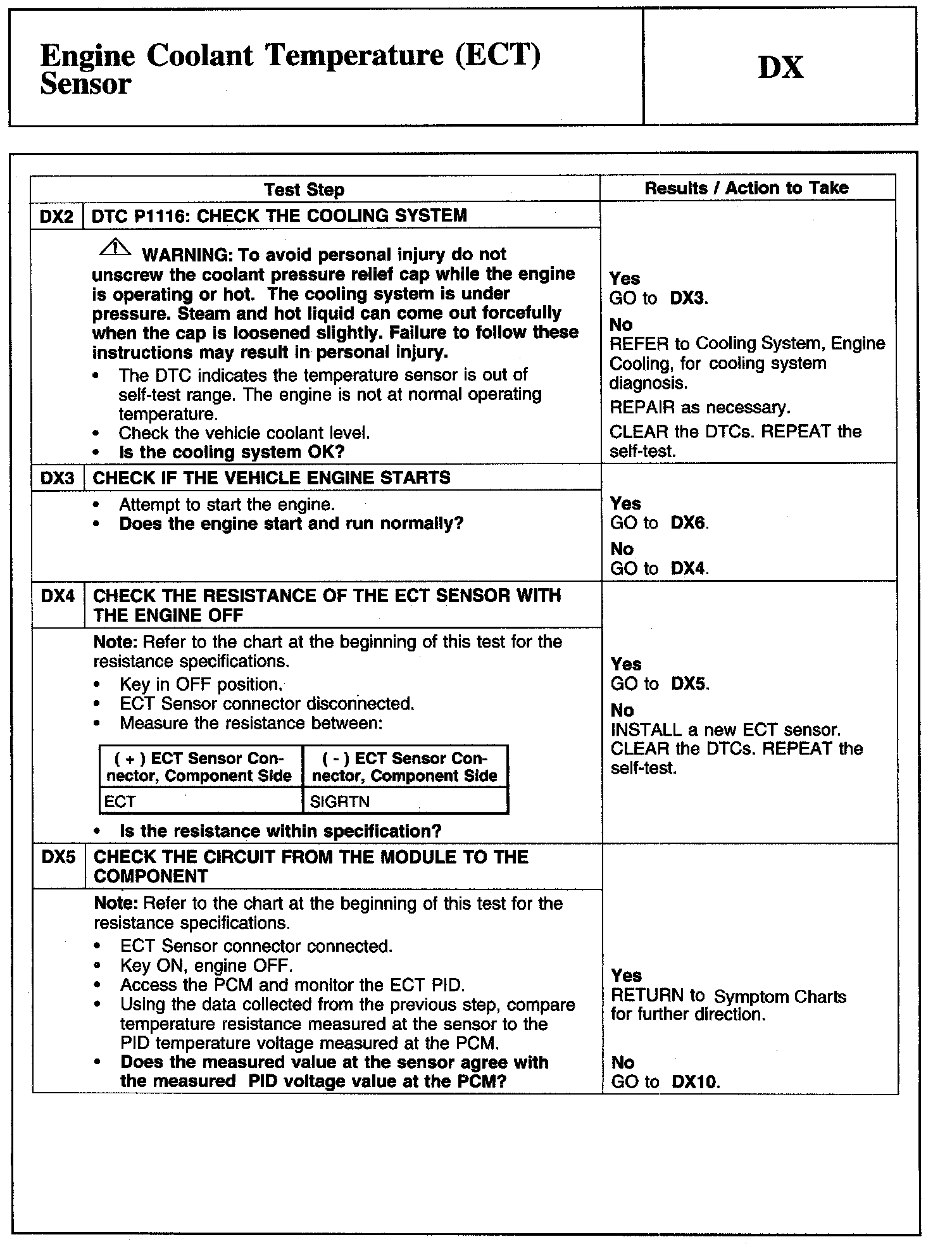

DX2-DX5:

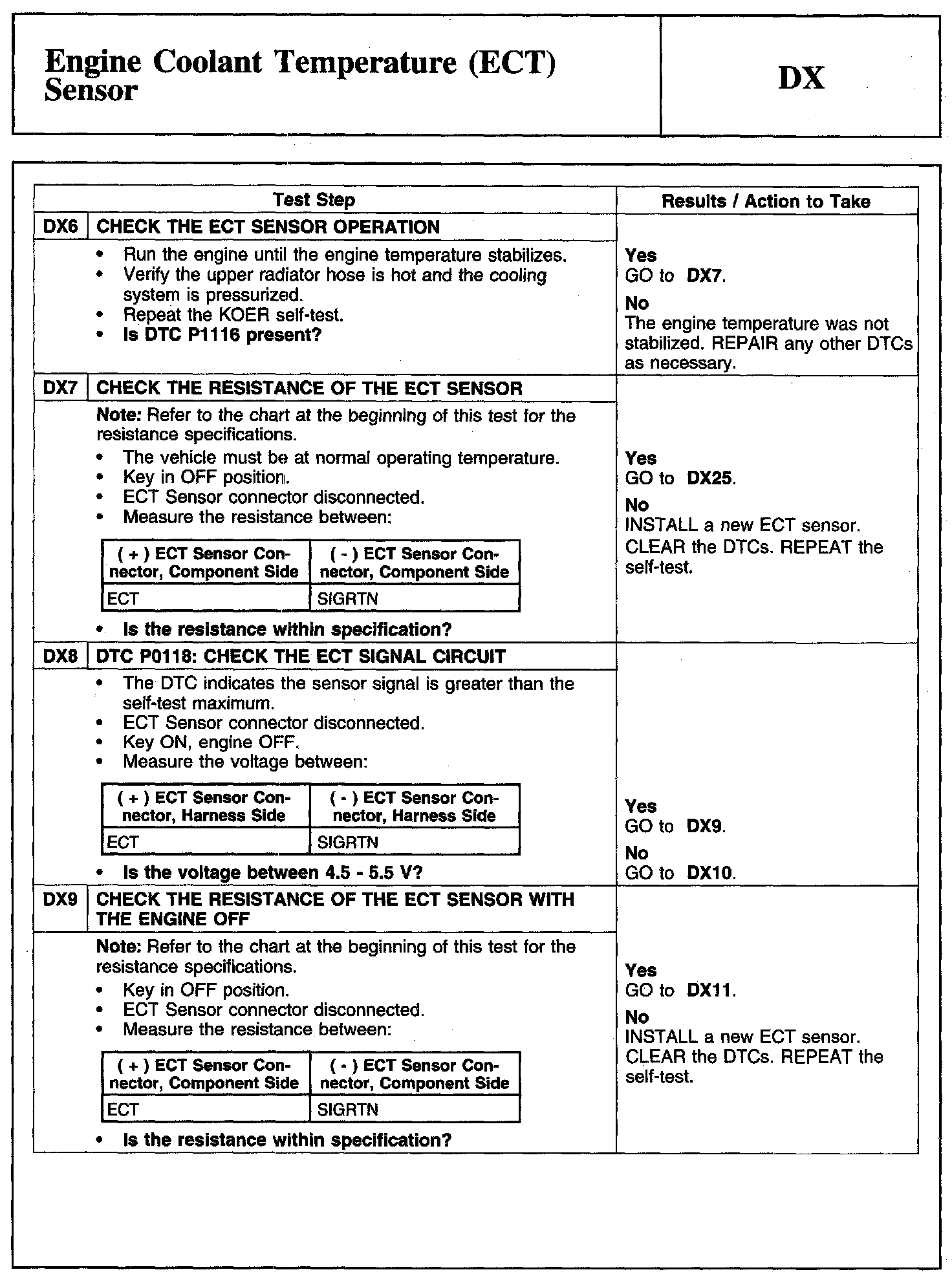

DX6-DX9:

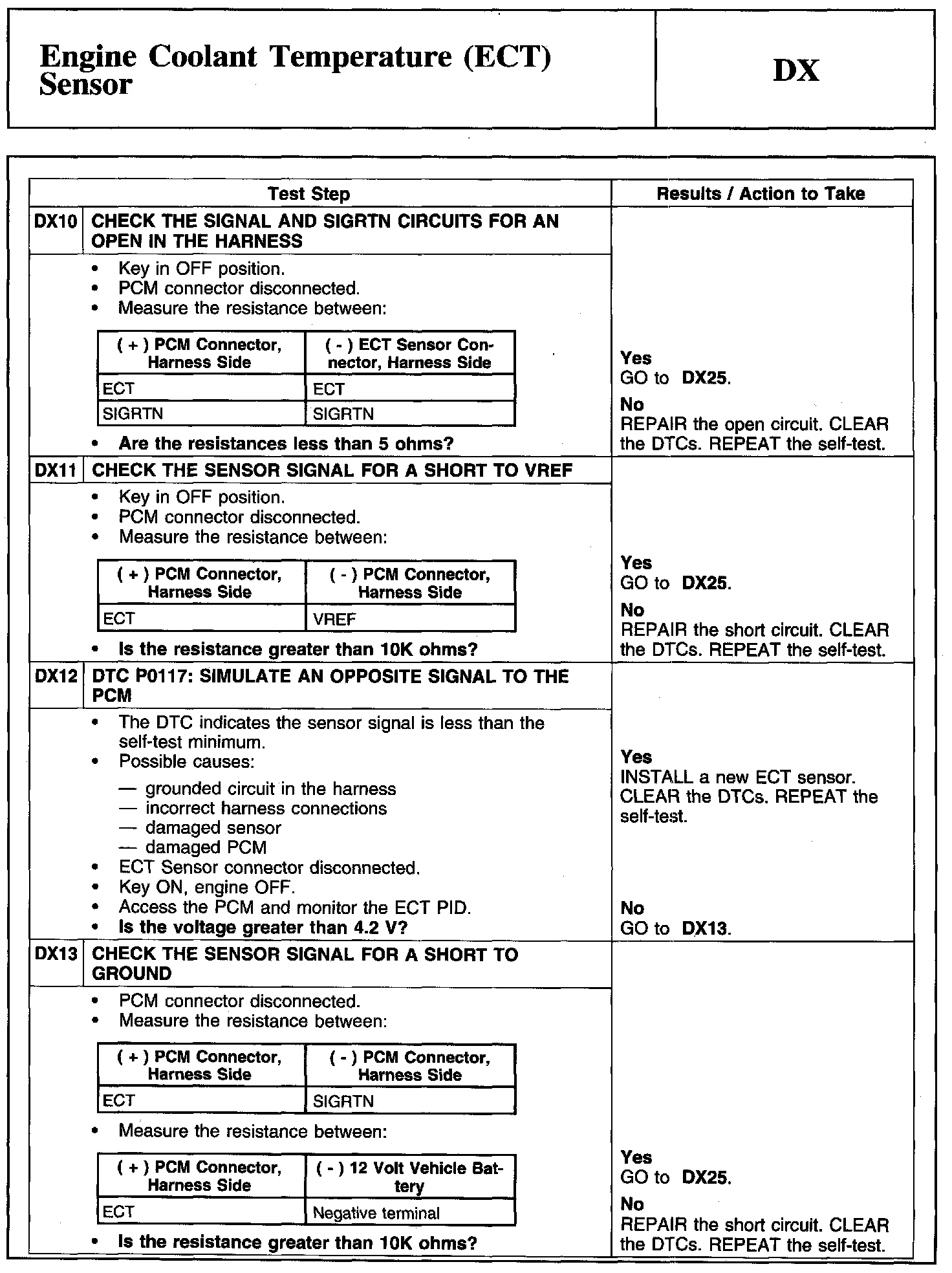

DX10-DX13:

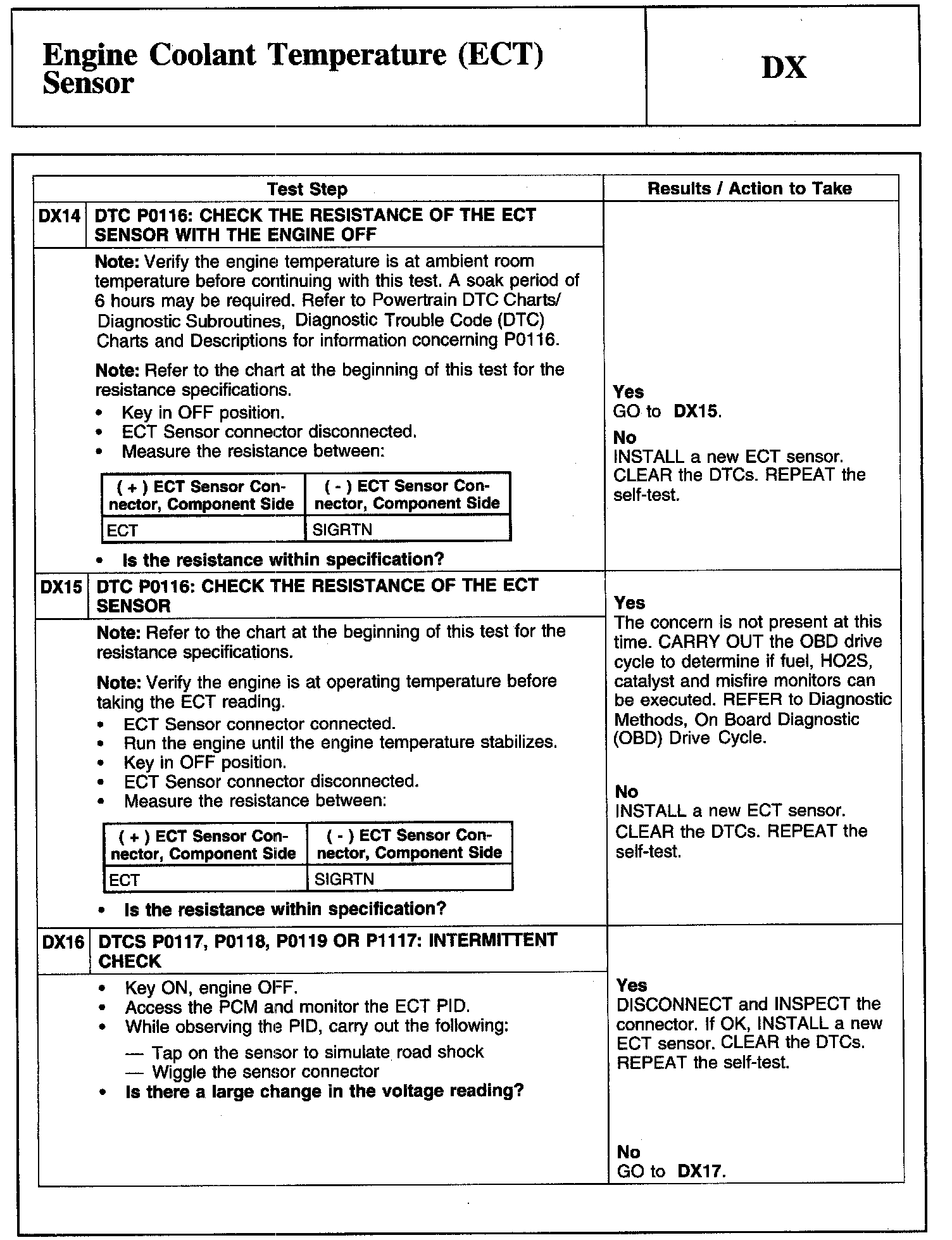

DX14-DX16:

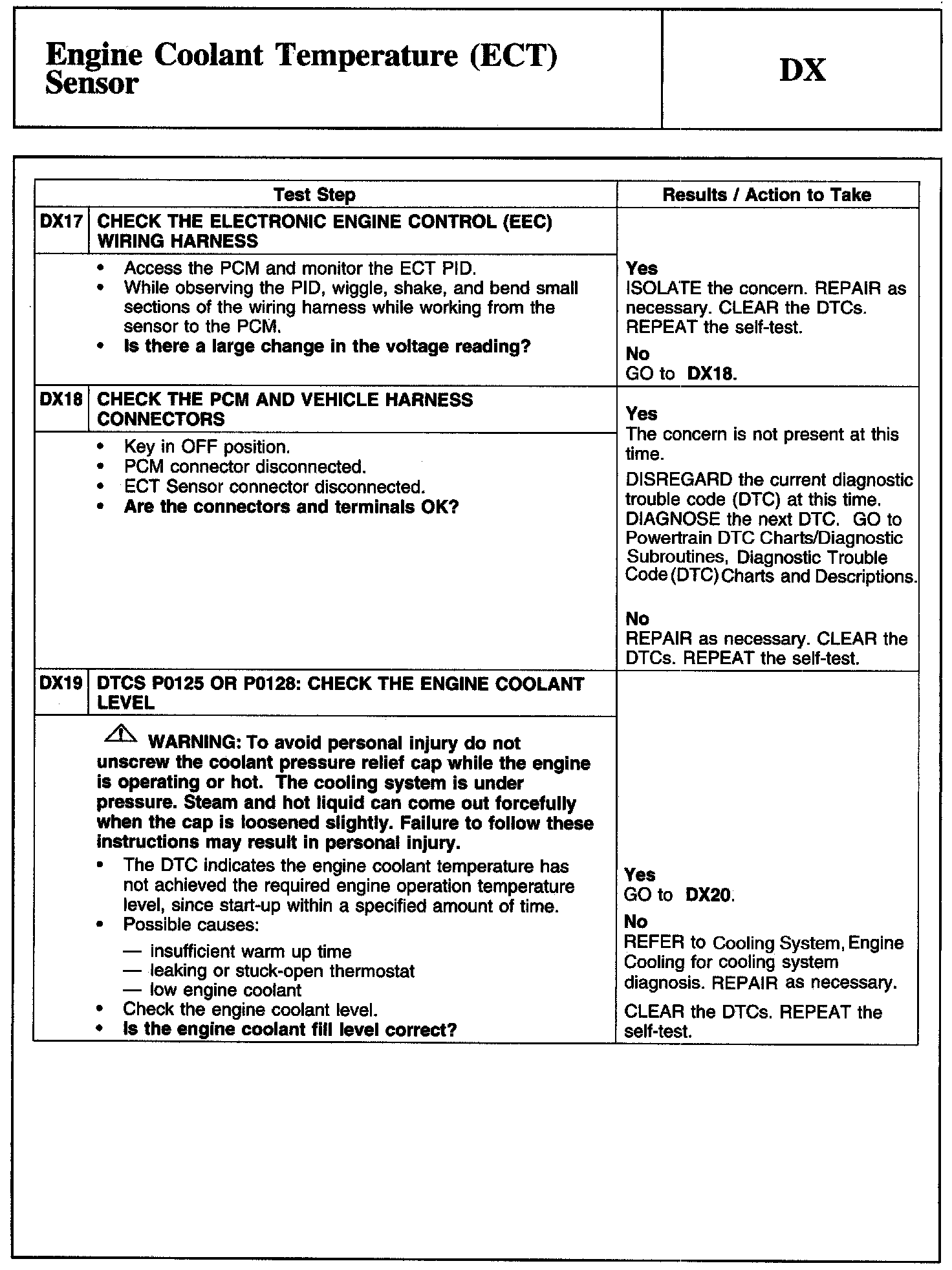

DX17-DX19:

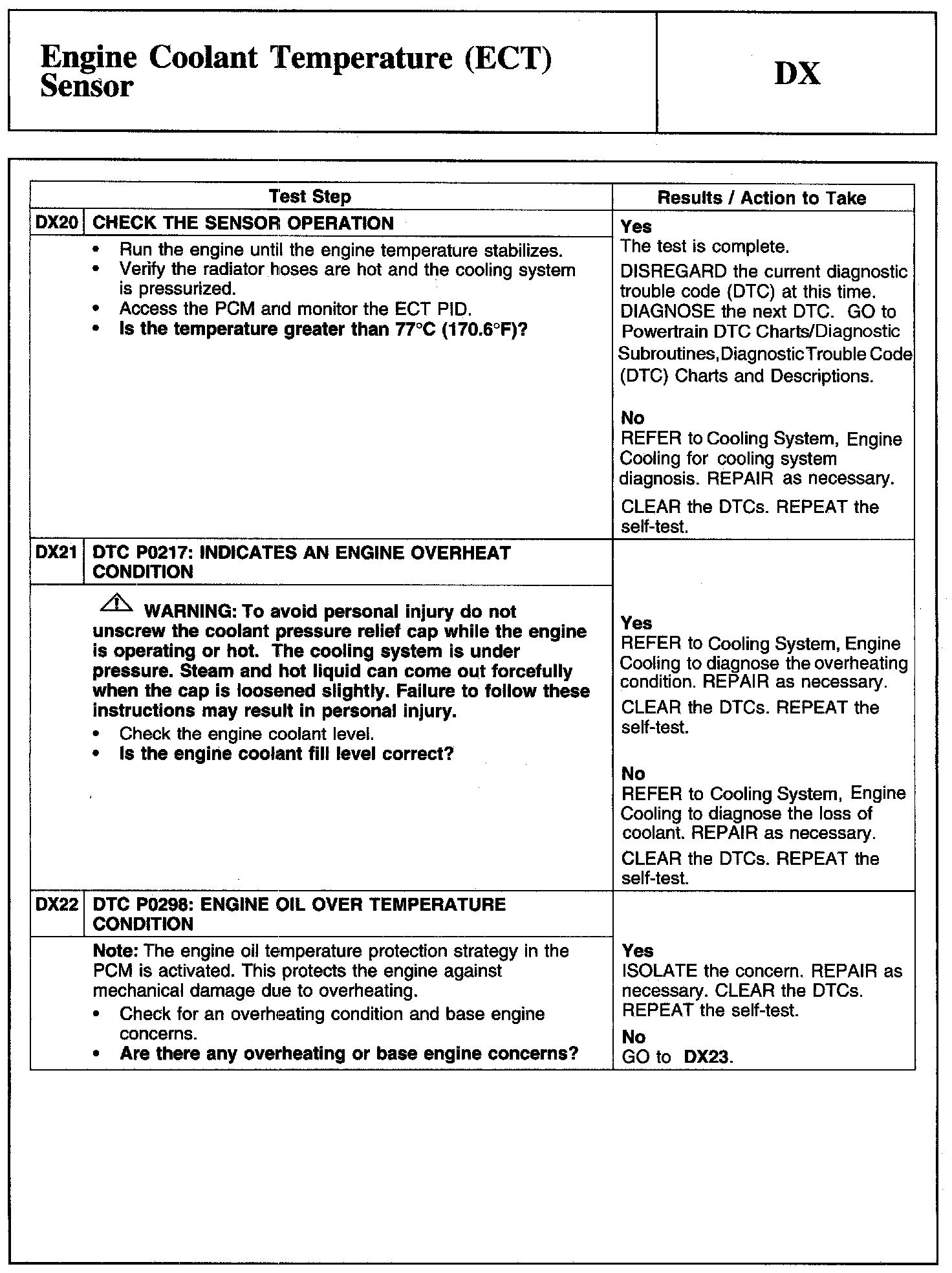

DX20-DX22:

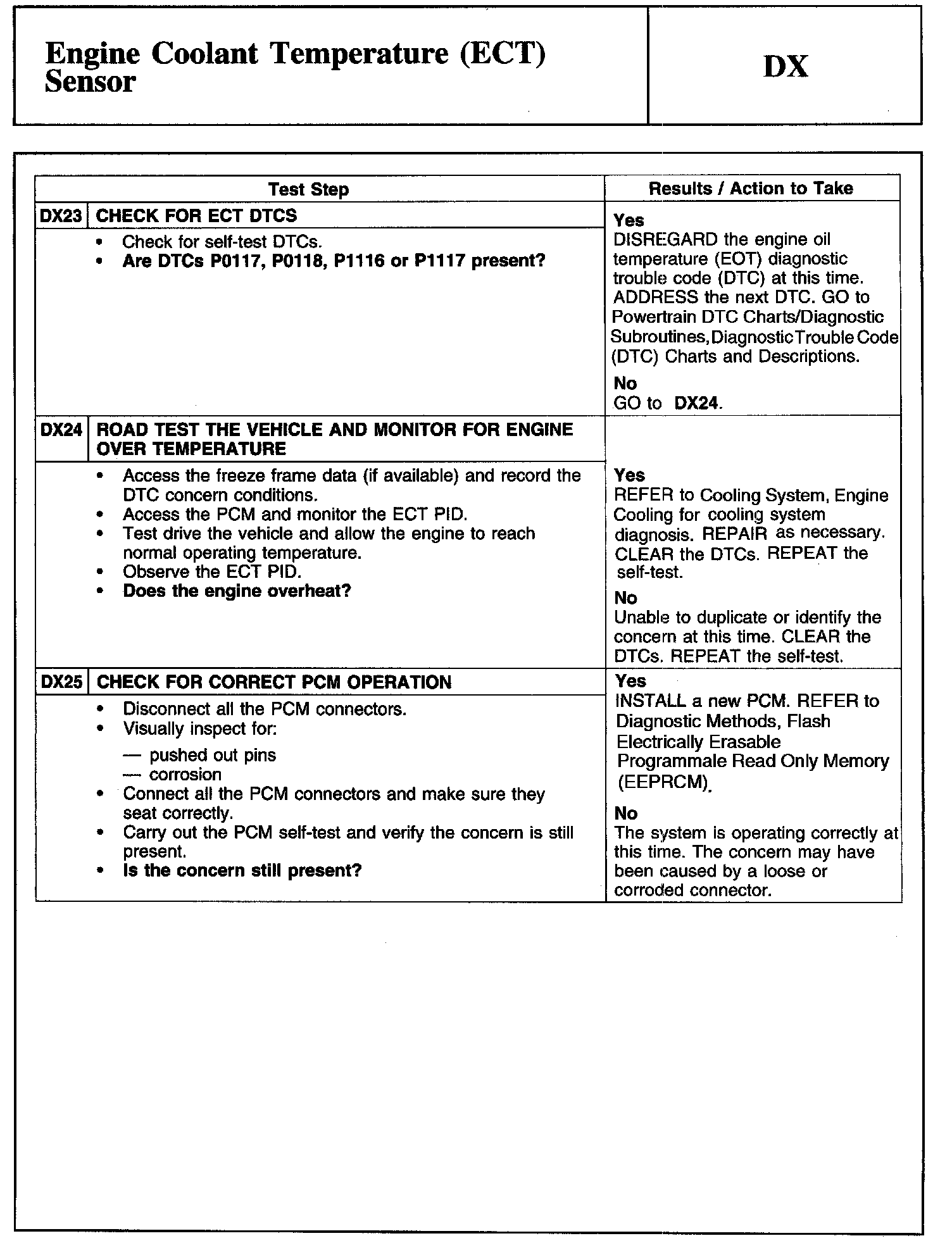

DX23-DX25:
