Windshield Washer Switch: Service and Repair

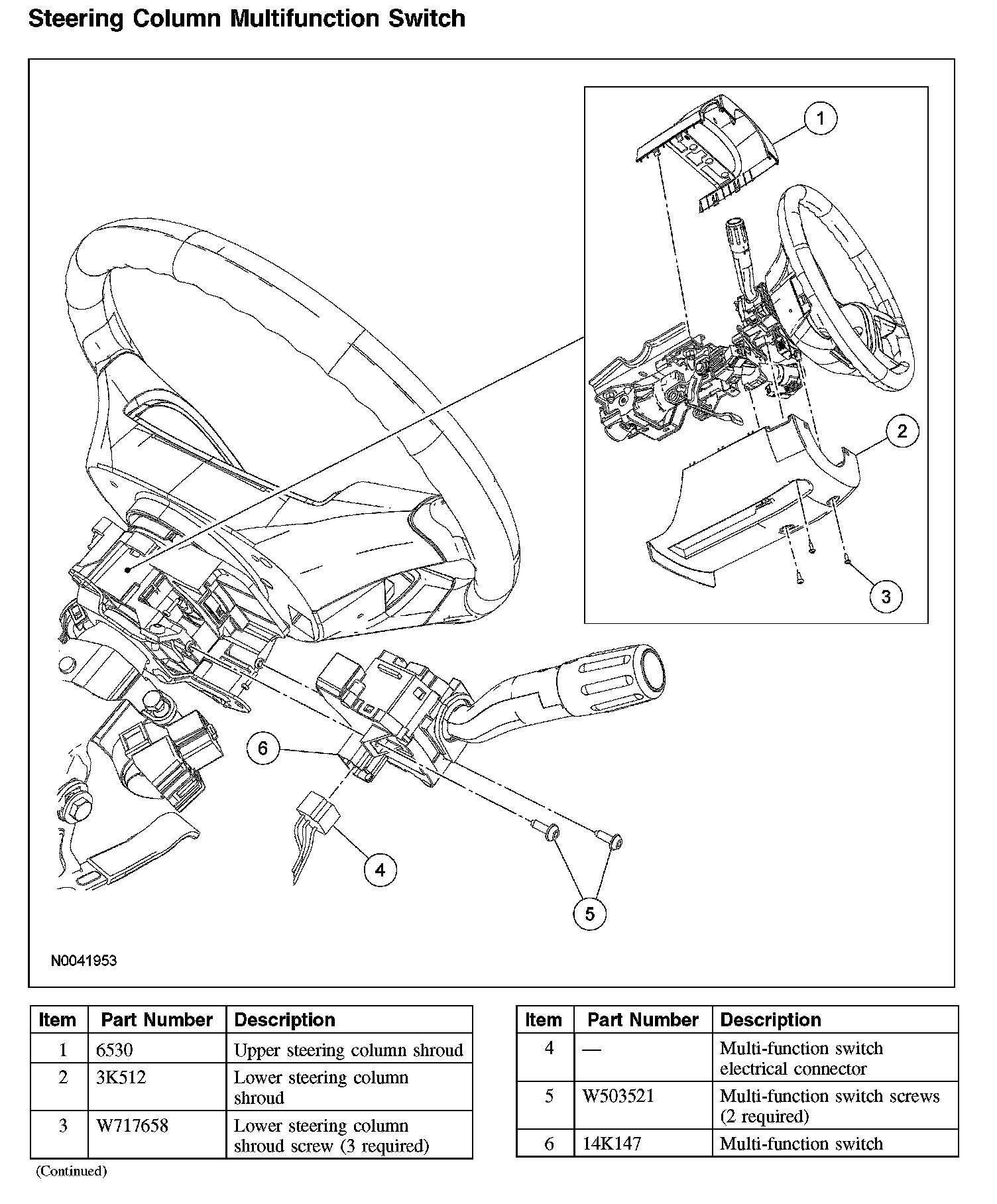

Steering Column Multifunction Switch

Steering Column Multifunction Switch:

Removal and Installation

1. NOTE: Release the upper steering column shroud by pressing inward on the sides of the shroud and lifting upwards.

Remove the upper steering column shroud.
2. Release the tilt lever, remove the 3 screws and then remove the lower steering column shroud.
3. Disconnect the multi-function switch electrical connector.
4. Remove the 2 multi-function switch screws and remove the switch.
5. To install, reverse the removal procedure.
