License Lamps / Liftgate Release Switch Connector

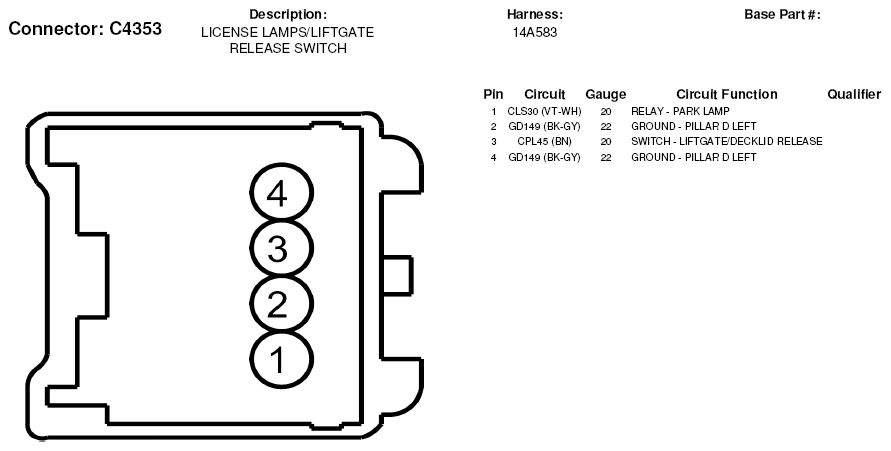

Fig 1: License Lamps / Liftgate Release Switch Connector End View (C4353)
G05182833Courtesy of FORD MOTOR CO.
