Liftgate Drive Unit Connector

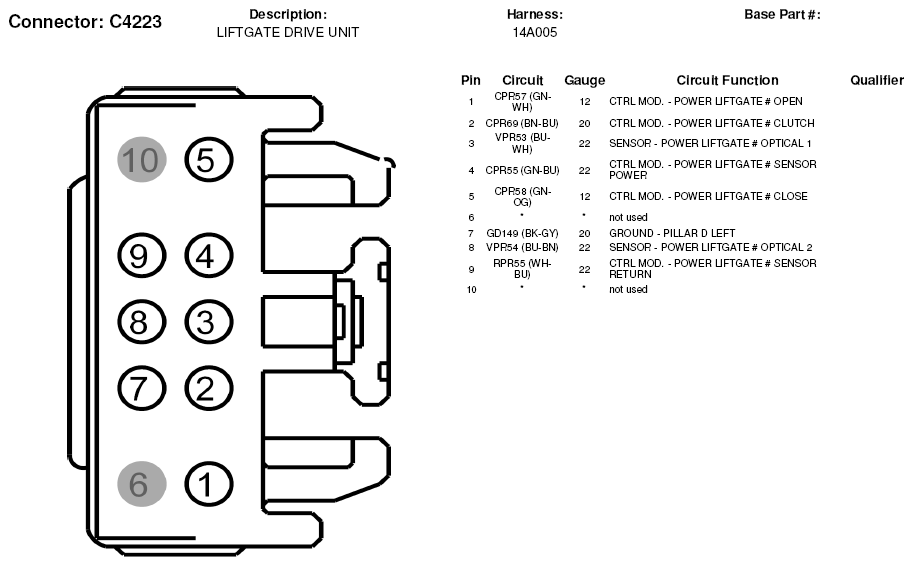

Fig 1: Liftgate Drive Unit Connector End View (C4223)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
