Master Window Adjust Switch Connector

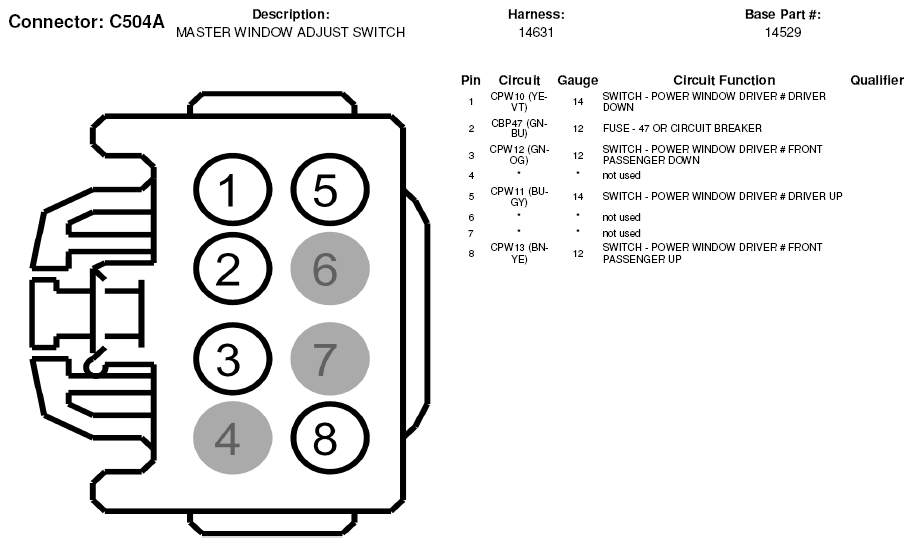

Fig 1: Master Window Adjust Switch Connector End View (C504A)
G05182640Courtesy of FORD MOTOR CO.

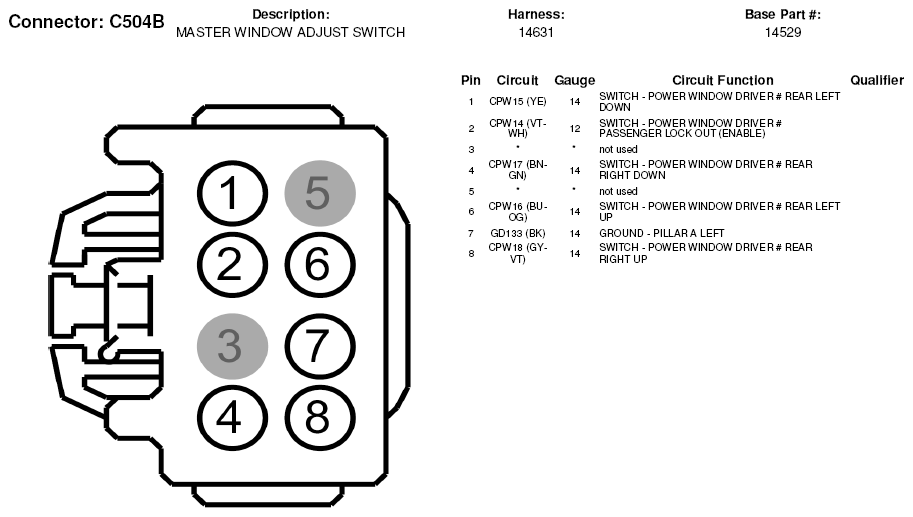

Fig 2: Master Window Adjust Switch Connector End View (C504B)
G05182641Courtesy of FORD MOTOR CO.

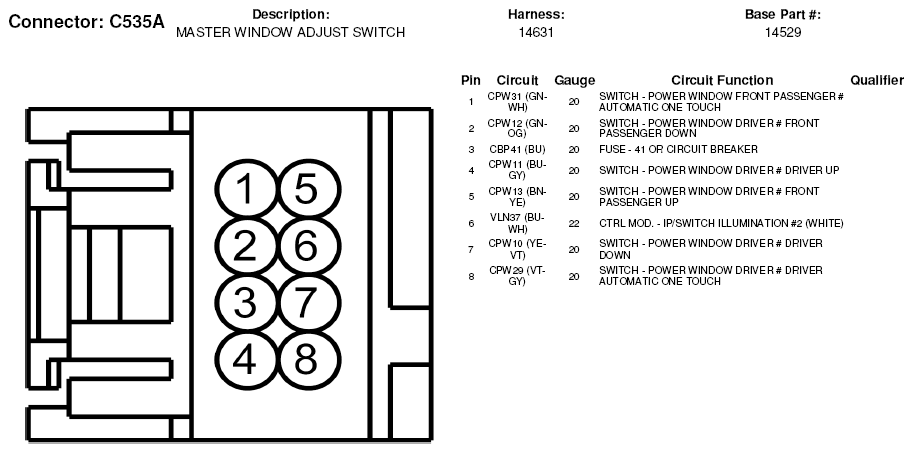

Fig 3: Master Window Adjust Switch Connector End View (C535A)
G05182648Courtesy of FORD MOTOR CO.

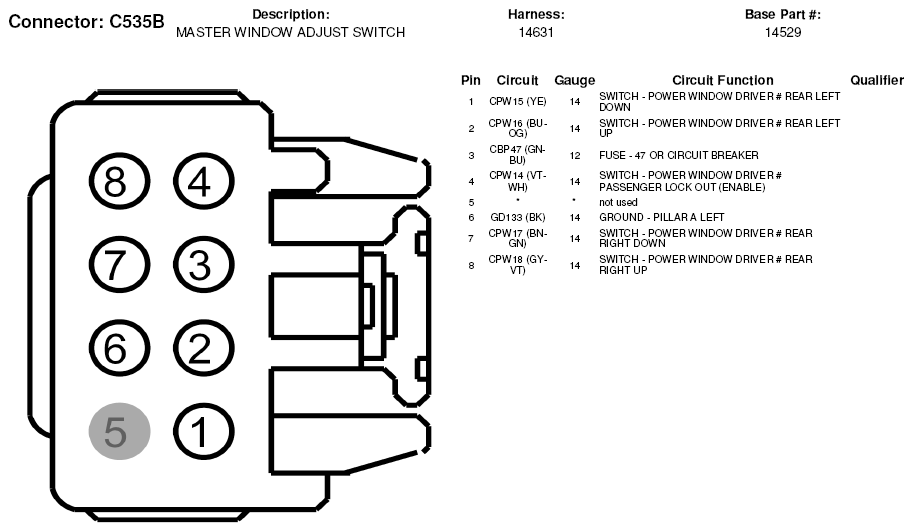

Fig 4: Master Window Adjust Switch Connector End View (C535B)
G05182649Courtesy of FORD MOTOR CO.
