Outside Temperature Sensor Connector

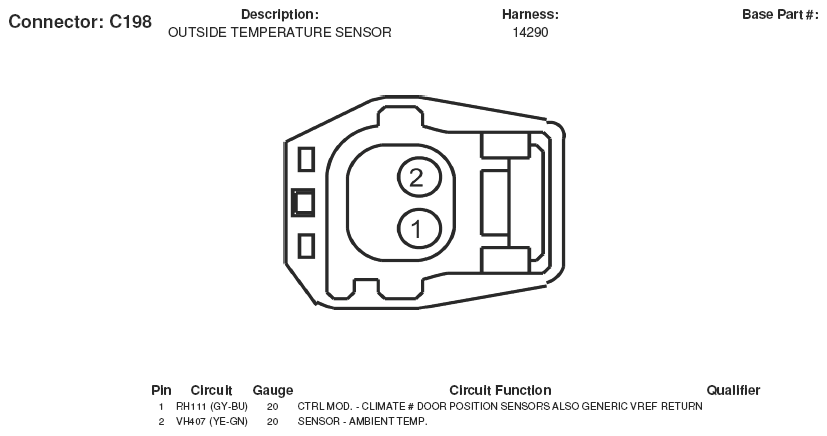

Fig 1: Outside Temperature Sensor Connector End View (C198)
Courtesy of FORD MOTOR CO.
