Steering Wheel Controls: Notes

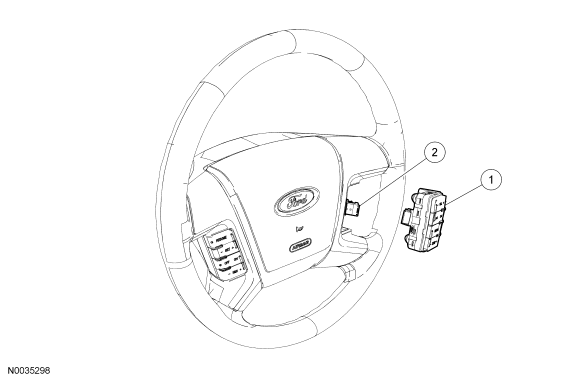

Fig 1: Exploded View Of Steering Wheel Controls - Edge

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	9C888	Steering wheel controls
2	-	Steering wheel controls electrical connector (part of 14A411)

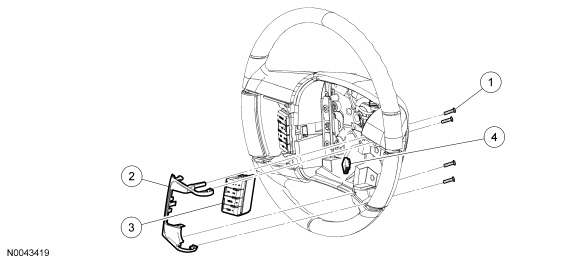

Fig 2: Exploded View Of Steering Wheel Controls - MKX

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Steering wheel controls bezel screws (4 required)
2	-	Steering wheel controls bezel
3	9C888	Steering wheel controls
4	-	Steering wheel controls electrical connector (part of 14A411)
