Driver Side Air Bag Module Connector - C367

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

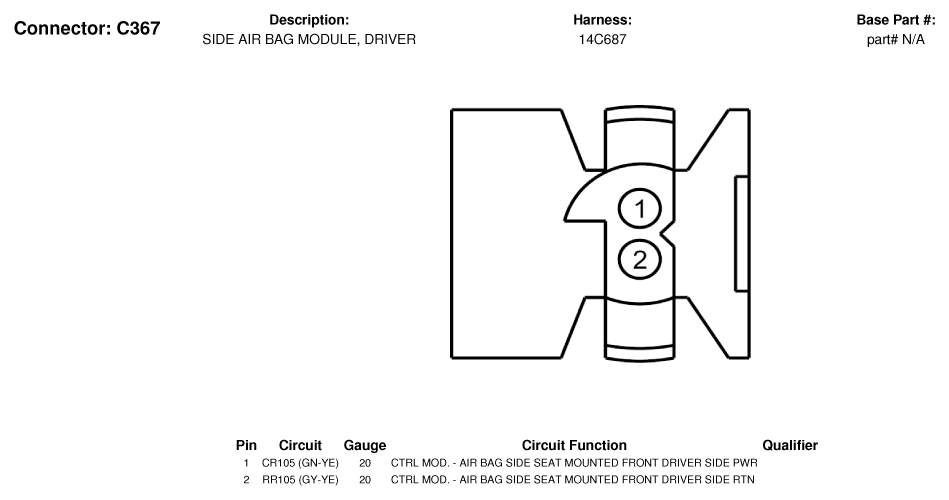

Fig 1: Driver Side Air Bag Module Connector End View (C367)
G07336104Courtesy of FORD MOTOR CO.
