Front Power Liftgate Open/Close Switch Connector - C2269

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

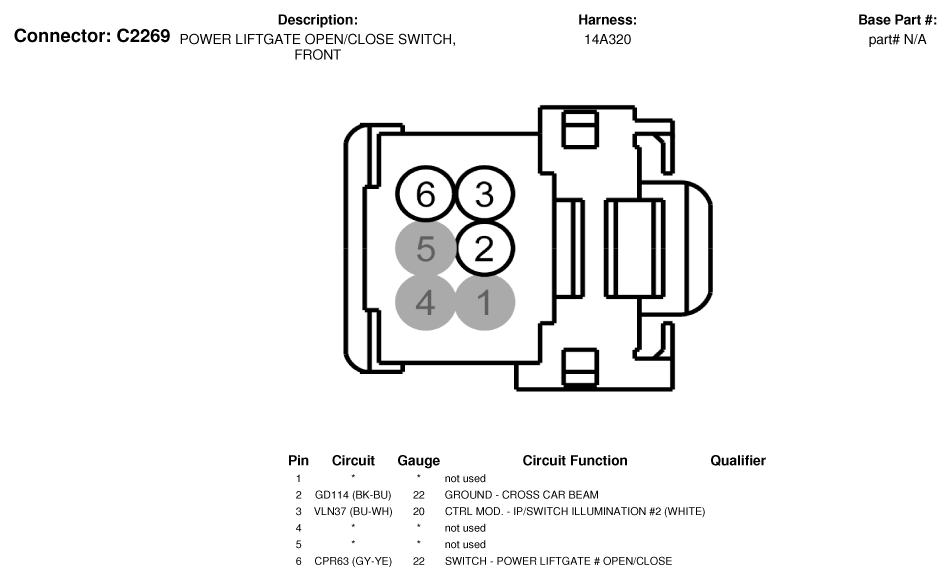

Fig 1: Front Power Liftgate Open/Close Switch Connector End View (C2269)
G07336256Courtesy of FORD MOTOR CO.
