Liftgate Latch Assembly / Liftgate Unlatch Assembly Connector - C4339

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

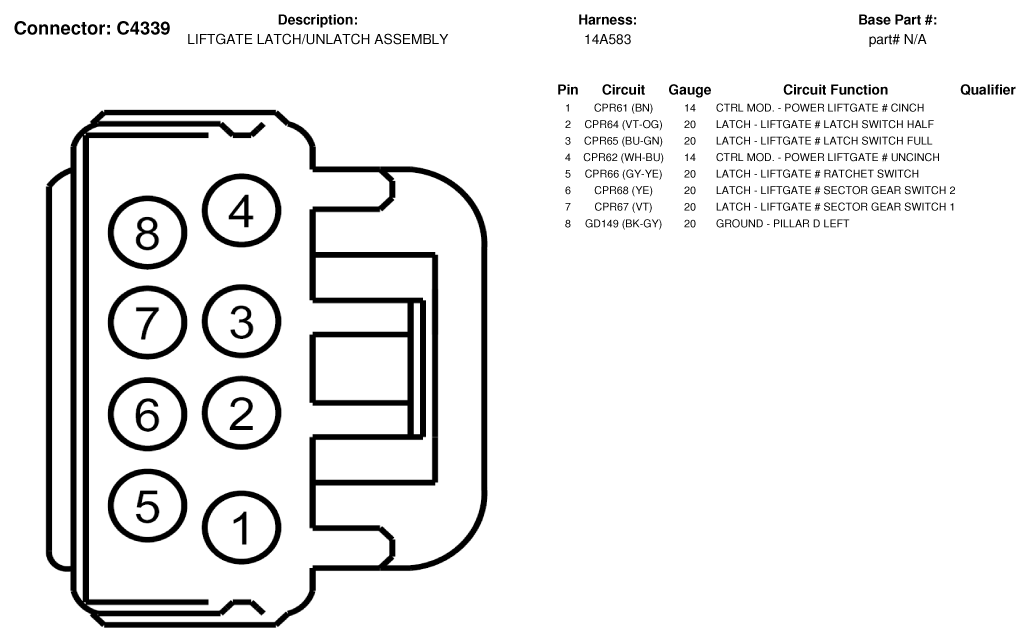

Fig 1: Liftgate Latch Assembly / Liftgate Unlatch Assembly Connector End View (C4339)
G07336435Courtesy of FORD MOTOR CO.
