Master Window Control Switch Connector - C504

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

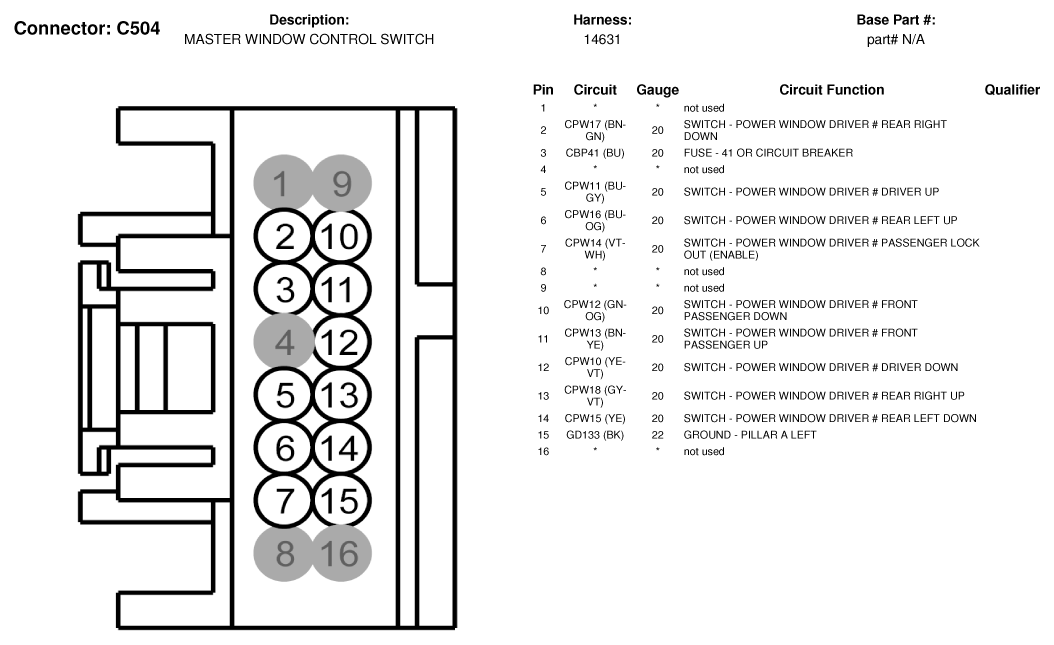

Fig 1: Master Window Control Switch Connector End View (C504)
G07336132Courtesy of FORD MOTOR CO.
