Camshaft Position (CMP) Sensor - 2.3L: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |

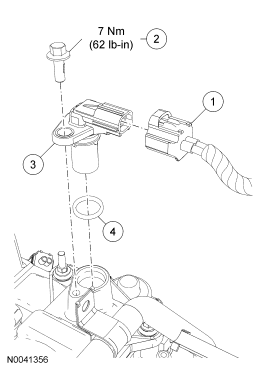

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Camshaft position (CMP) sensor electrical connector (part of 12B637) |
| 2 | W701219 | CMP sensor bolt |
| 3 | 12K073 | CMP sensor |
| 4 | - | CMP sensor O-ring seal |
