Camshaft Position (CMP) Sensor and Synchronizer - Exploded View, 3.0L
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

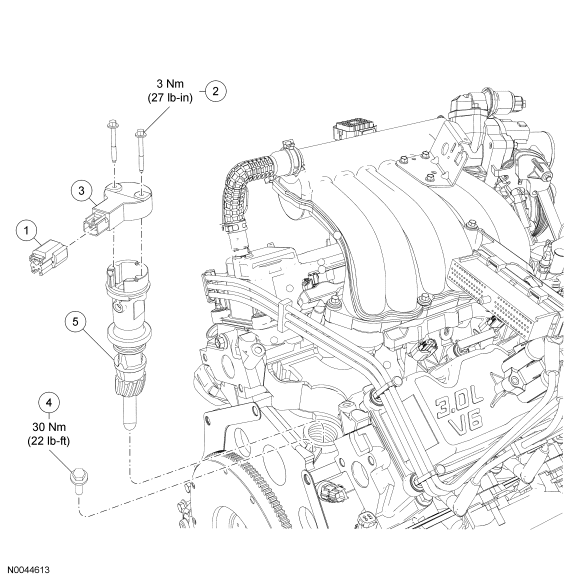

Fig 1: Exploded View Of Camshaft Position (CMP) Sensor & Synchronizer - 3.0L With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Camshaft position (CMP) sensor electrical connector (part of 12B637) |
| 2 | W701219 | CMP sensor bolt (2 required) |
| 3 | 6B288 | CMP sensor |
| 4 | - | Camshaft synchronizer bolt |
| 5 | 12A362 | Camshaft synchronizer |
- For additional information, refer to the procedures in this article.
