Master window adjust switch - MKX: Schematic

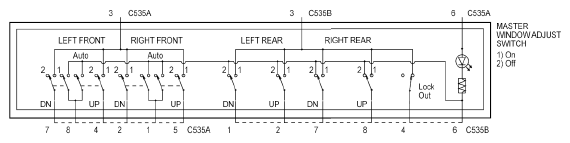

Fig 1: Master Window Adjust Switch - MKX - Schematic
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
