Memory Set Switch: Notes

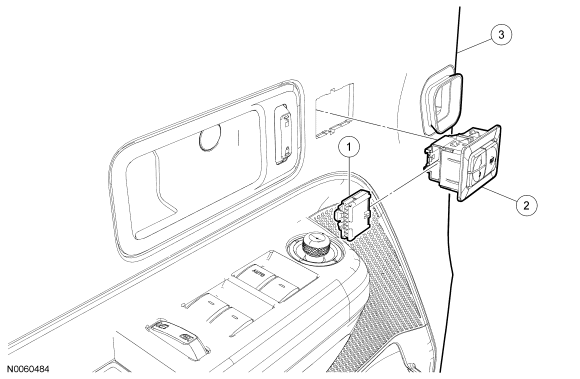

Fig 1: Exploded View Of Memory SET Switch, Edge
GF0030880Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Electrical connector (part of 14631)
2 14776 Memory SET switch
3 - Driver door trim panel

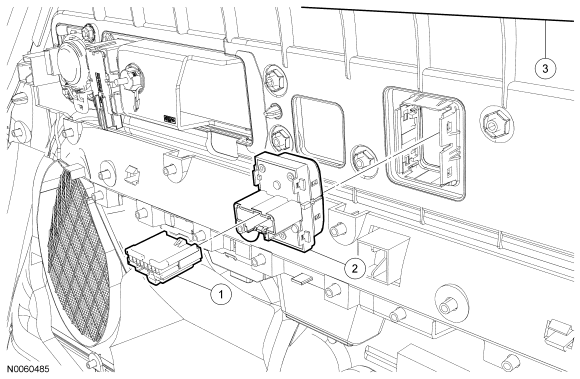

Fig 2: Exploded View Of Memory SET Switch, MKX
GF0030881Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Electrical connector (part of 14631)
2 14776 Memory SET switch
3 - Driver door trim panel
