Seat - Front: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |
NOTE:

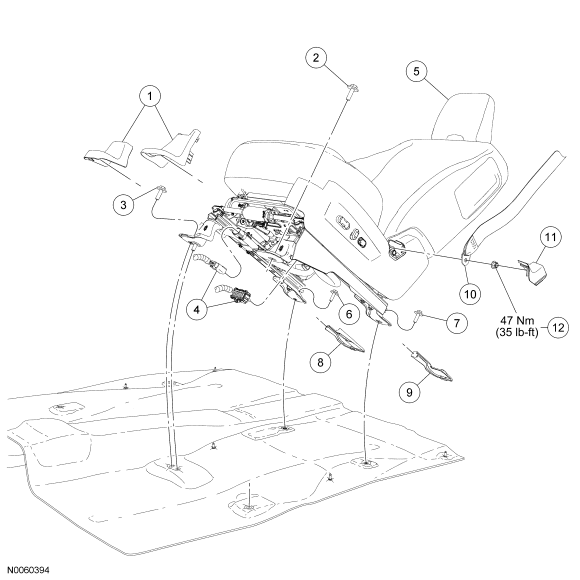

Driver seat shown, passenger seat similar.
NOTE:
For seat track-to-floor bolt torque specification and torque sequence, refer to the steps in this procedure.
| Item | Part Number | Description |
|---|---|---|
| 1 | 66410 | Seat track-to-floor front bolt covers (2 required) |
| 2 | W712888 | Seat track-to-floor front outboard bolt |
| 3 | W712888 | Seat track-to-floor front inboard bolt |
| 4 | - | Electrical connectors (part of 14A005) |
| 5 | - | Front seat assembly |
| 6 | W712888 | Seat track-to-floor rear inboard bolt |
| 7 | W712888 | Seat track-to-floor rear outboard bolt |
| 8 | 61748 | Seat track-to-floor rear inboard bolt cover |
| 9 | 61749 | Seat track-to-floor rear outboard bolt cover |
| 10 | - | Safety belt retractor belt anchor (part of 611B08 RH/611B09 LH) |
| 11 | 62187 | Safety belt retractor belt anchor nut cover |
| 12 | - | Safety belt retractor belt anchor nut (part of 611B08 RH/611B09 LH) |
