HVAC Module EMTC Connector

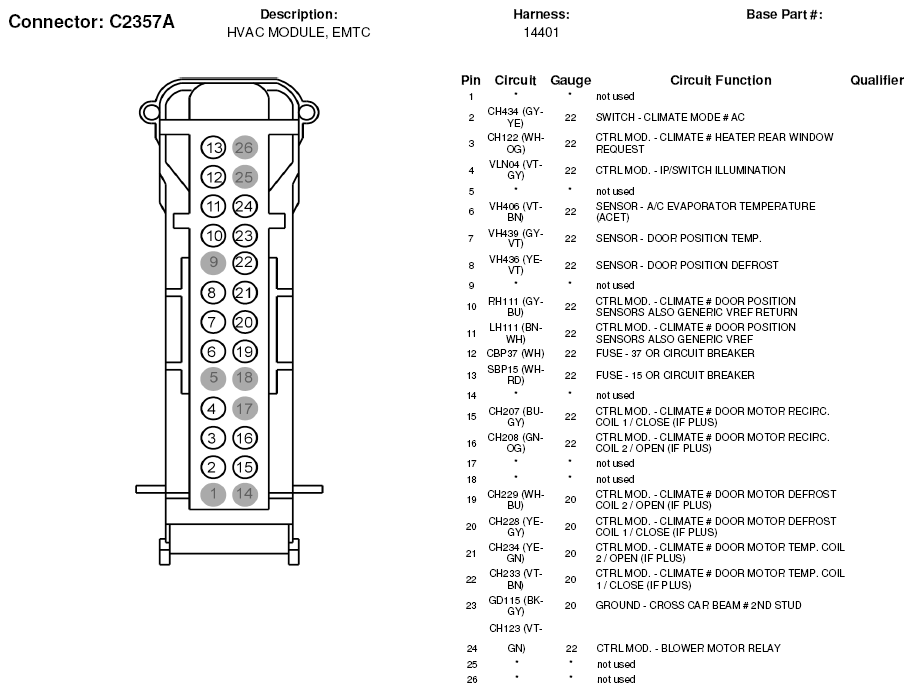

Fig 1: HVAC Module EMTC Connector End View (C2357A)
G05182745Courtesy of FORD MOTOR CO.

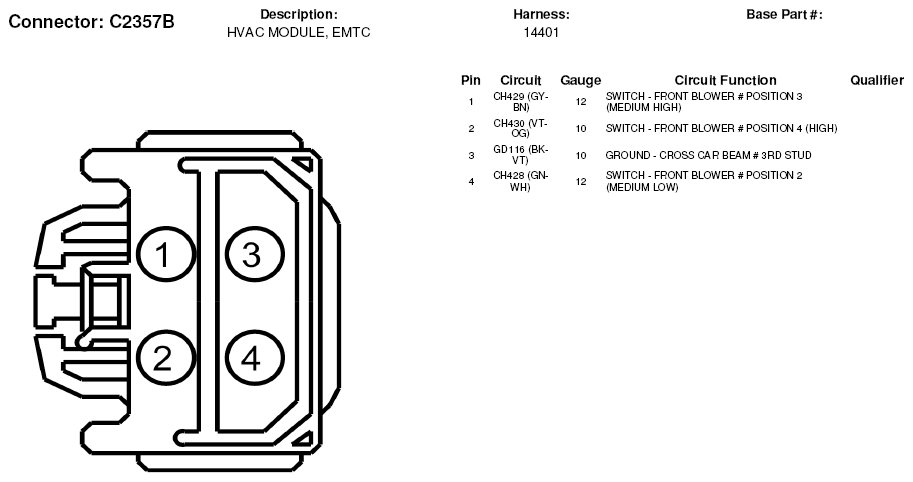

Fig 2: HVAC Module EMTC Connector End View (C2357B)
G05182746Courtesy of FORD MOTOR CO.
