Seat Track Position Sensor Connector

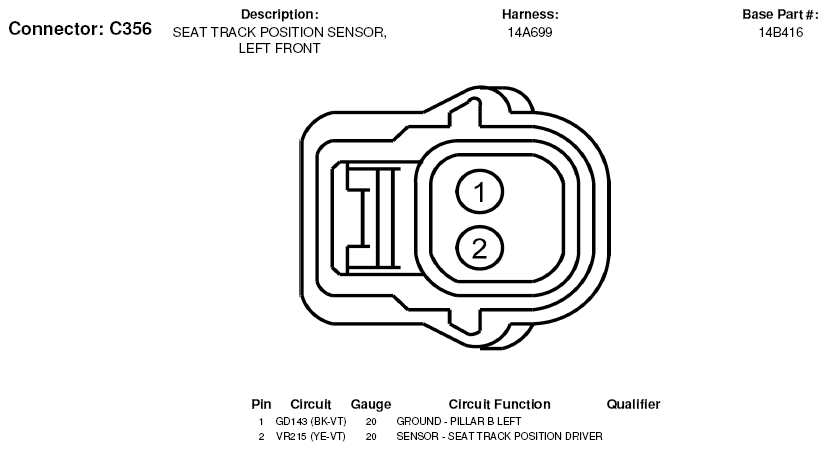

Fig 1: Seat Track Position Sensor Connector End View (C356)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
