Wheel Speed Sensor Connectors

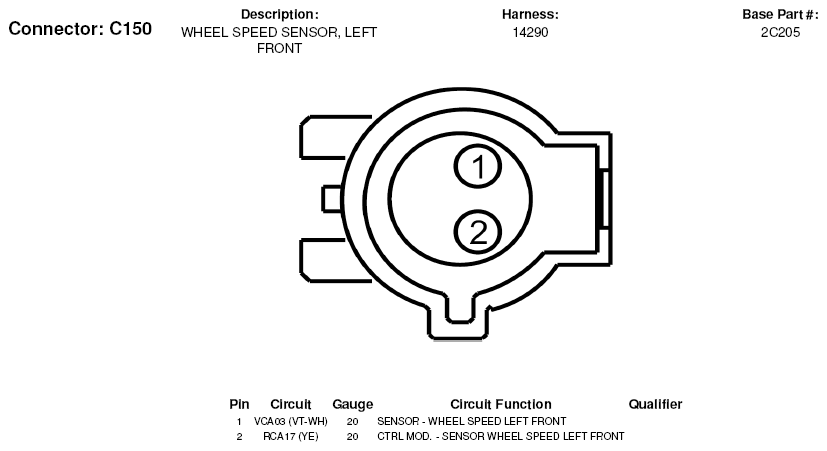

Fig 1: Wheel Speed Sensor Connector End View (C150)
G05182534Courtesy of FORD MOTOR CO.

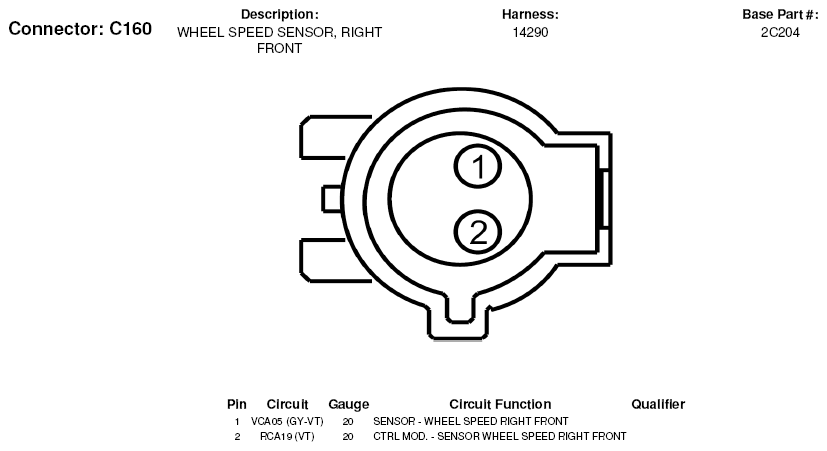

Fig 2: Wheel Speed Sensor Connector End View (C160)
G05182537Courtesy of FORD MOTOR CO.
Fig 3: Wheel Speed Sensor Connector End View (C426)
G05182624Courtesy of FORD MOTOR CO.

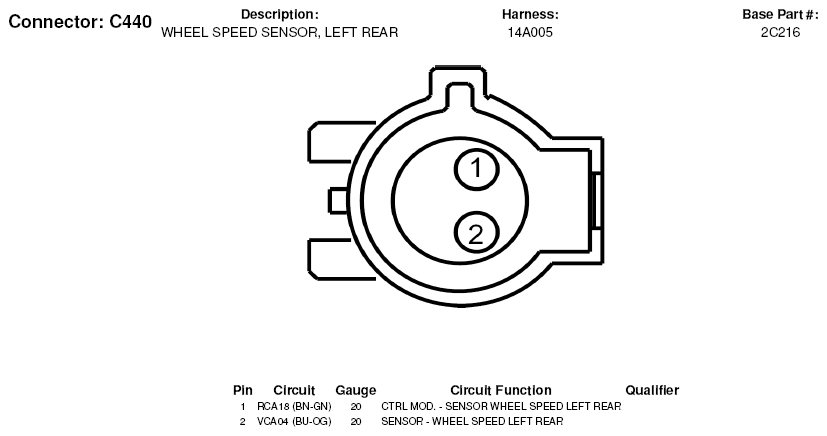

Fig 4: Wheel Speed Sensor Connector End View (C440)
G05182628Courtesy of FORD MOTOR CO.
