Fuel Level Sender: Notes

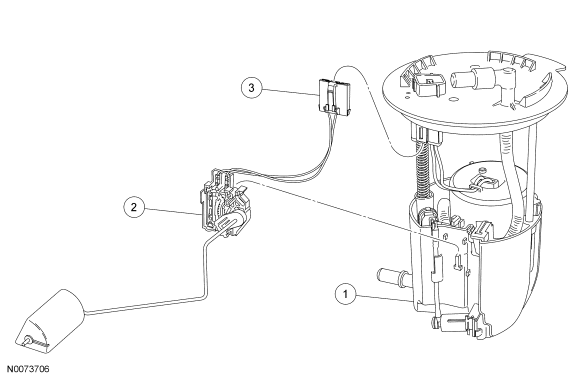

Fig 1: Exploded View Of Fuel Level Sender
GF0032037Courtesy of FORD MOTOR CO.
Item Part Number Description
1 9H307 Fuel pump (FP) module
2 9A299 Fuel level sender
3 - Fuel level sender electrical connector (part of 9A299)
