Windshield Wipers
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

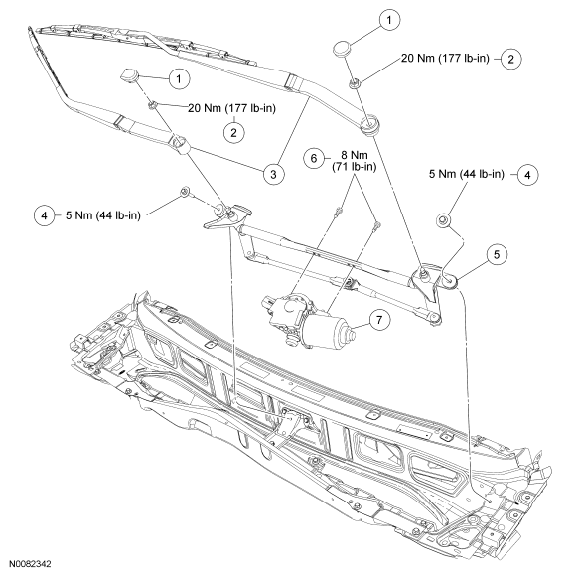

ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 17C526 | Wiper pivot arm caps (2 required) |
| 2 | W520403 | Wiper pivot arm nuts (2 required) |
| 3 | 17526 | Wiper pivot arm assembly |
| 4 | W701121 | Windshield wiper mounting arm and pivot shaft assembly bolts (2 required) |
| 5 | 17566 | Windshield wiper mounting arm and pivot shaft assembly |
| 6 | - | Wiper motor-to-wiper mounting arm bolts (part of 17508) (2 required) |
| 7 | 17508 | Wiper motor assembly |
