Driver Air Bag Module: Installation
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the driver air bag module.
- Connect the horn electrical connector.
- Connect the driver air bag module electrical connectors as noted during removal.
- Install the driver air bag module electrical wiring into the driver air bag wiring clip.

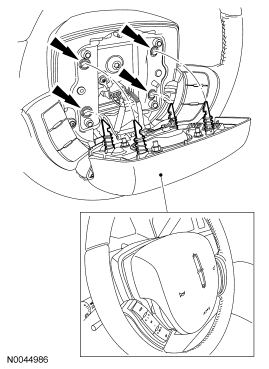

- Align the 4 driver air bag module locking pins to the openings in the steering wheel and position the driver air bag module in place.
- With the locking pins aligned and the driver air bag module positioned to the steering wheel, push inward seating the 4 locking pins to the spring clips.
- An audible click should be heard when the driver air bag module locking pins are seated in place to the spring clip. When the 4 locking pins are seated in place, there should be an even uniform gap between the driver air bag module trim cover and the steering wheel.
- Repower the SRS. For additional information, refer to Supplemental Restraint System (SRS) Depowering and Repowering .
NOTE:
With the driver air bag module held as close to the steering wheel as possible, take up the slack in the wiring by gently tucking any excess length into the pocket at the bottom of the steering wheel before rocking the driver air bag module into place.
