Wiper and Washer System - Exploded View
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

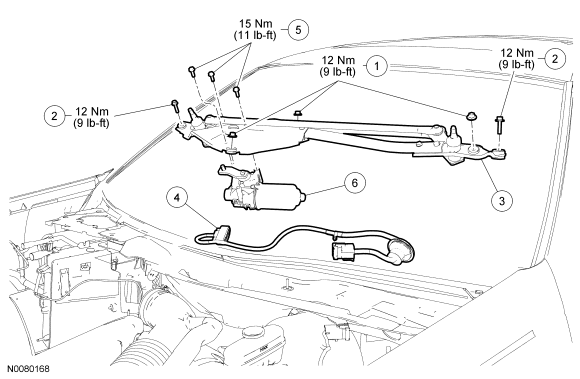

| Item |
Part Number |
Description |
| 1 |
- |
Wiper mounting arm and pivot shaft nuts (3 required) |
| 2 |
- |
Wiper mounting arm and pivot shaft bolts (2 required) |
| 3 |
17566 |
Wiper mounting arm and pivot shaft |
| 4 |
- |
Windshield wiper motor electrical connector (part of 17D539) |
| 5 |
- |
Windshield wiper motor bolts (3 required) |
| 6 |
17504 |
Windshield wiper motor |
Courtesy of FORD MOTOR CO.

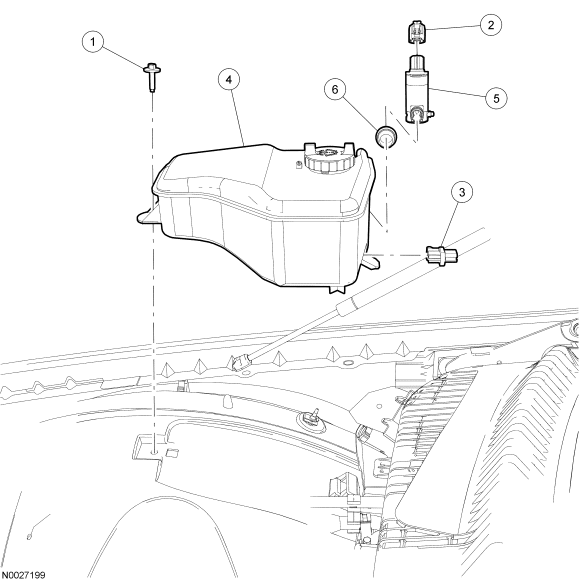

| Item |
Part Number |
Description |
| 1 |
N606676 |
Windshield washer reservoir bolt |
| 2 |
- |
Windshield washer pump electrical connector (part of 14290) |
| 3 |
- |
Windshield washer fluid level sensor electrical connector (part of 14290) |
| 4 |
17618 |
Windshield washer reservoir |
| 5 |
17B613 |
Windshield washer pump |
| 6 |
17B610 |
Windshield washer pump seal |
- For additional information, refer to the appropriate procedures.
