Occupant Classification Sensor - Power Seat Track: Installation

All OCS weight sensor bolt(s)

NOTE: Do not overtighten the side plate with the Occupant Classification Sensor (OCS) weight sensor bolts to the bench or table. Tighten only enough to compress the spring washer. Overtightening may damage the side plate or OCS  weight sensor bolts.
1. Position the spring washer and OCS  weight sensor bolt in the side plate. Then clamp the side plate to a bench or table to compress the OCS  weight sensor bolt spring washer.
NOTE: Make sure the OCS  weight sensor bolt retaining clip is seated fully in the OCS  weight sensor bolt groove underneath the OCS  weight sensor O-ring seal.

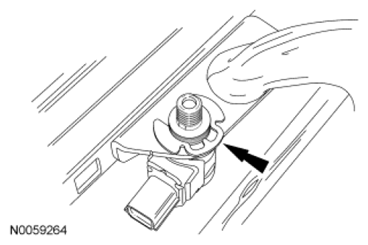

Fig 1: Locating OCS Weight Sensor Bolt Retaining Clip
Courtesy of FORD MOTOR CO.
2. Install the OCS  weight sensor bolt retaining clip.
3. Remove the clamp and side plate from the bench or table.

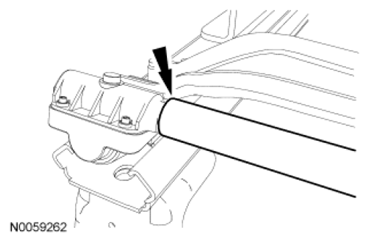

   Fig 2: Locating Clamp And Side Plate

   Courtesy of FORD MOTOR CO.
NOTE: Slight rotational adjustment of the front seat track motor cable and OCS  weight sensor bolts may be necessary to install the OCS  weight sensor bolts and side plate to the seat track rail.
Fig 3: Locating Front Seat Track Motor Cable
Courtesy of FORD MOTOR CO.
4. Install the front seat track motor cable to the seat track rail. Then install the side plate with the OCS  weight sensor bolts to the seat track rail.
NOTE: When installing the side plate to the seat track rail, 2 new OCS  weight sensor nuts must be installed.
5. Install the 2 new OCS  weight sensor bolt nuts to the seat track rail.
   • Tighten to 33 Nm (24 lb-ft).
NOTE: Outboard side shown in illustration, inboard similar.
6. Install the nut to the seat track front cross brace.
   • Tighten to 20 Nm (177 lb-in).

   Outboard OCS weight sensor bolt(s)

7. Install the 2 retainers and OCS  weight sensor bolt protection bracket.
8. Install the front retainer and outboard seat track riser cover shield.

   Inboard OCS weight sensor bolt(s)

9. Install the nut and safety belt buckle.
   • Tighten to 40 Nm (30 lb-ft).

   All OCS weight sensor bolt(s)

10. Install the power seat track. For additional information, refer to REMOVAL AND INSTALLATION .
11. Install the passenger seat and repower the SRS  . Do not prove out the SRS at this time  . For additional information, refer to REMOVAL AND INSTALLATION .
12. Carry out the System Reset procedure and prove out the SRS  . For additional information, refer to OCCUPANT CLASSIFICATION SENSOR (OCS) SYSTEM RESET .
