Parking Aid Module Connector - C4014

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

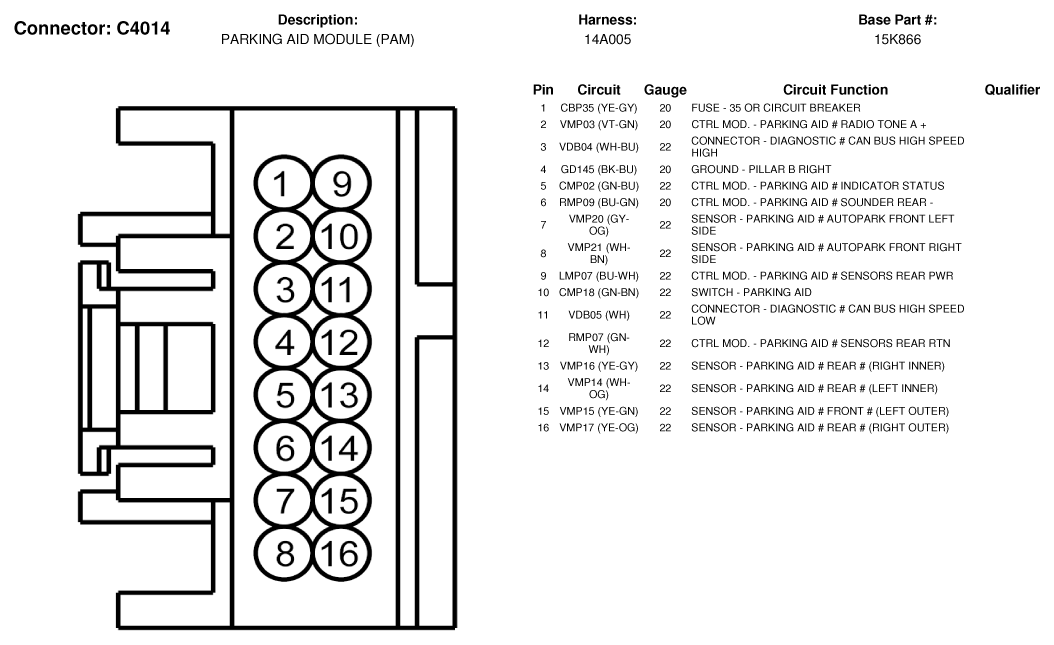

Fig 1: Parking Aid Module Connector End View (C4014)
G07336400Courtesy of FORD MOTOR CO.
