Steering Column Telescoping Motor Connector - C227

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

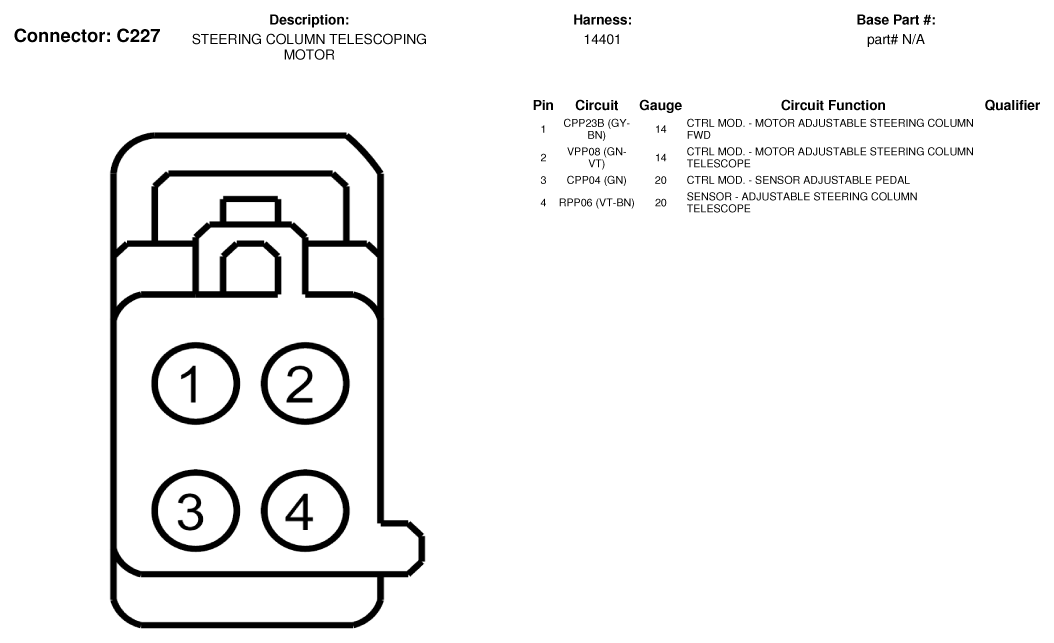

Fig 1: Steering Column Telescoping Motor Connector End View (C227)
G07336040Courtesy of FORD MOTOR CO.
