Pinpoint Test M: The Stability/Traction Control System Cannot Be Disabled

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.
  1. M1 CHECK FOR ANY COMMUNICATION DTCs
    • Connect the scan tool.
    • Ignition ON.
    • Check the IPC, the PCM and the ABS module for any communication DTCs.
    • Are any communication DTCs present?
  2. M2 ISOLATE THE TRACTION CONTROL SWITCH
    NOTE: If a MyKey™ restricted key is in use with Advance Trac® always-on feature configured to "on", the traction control system cannot be disabled. An admin key must be used in order to enable and disable the traction control system.
    • Ignition OFF.
    • Disconnect: FCIM C2402 (MKZ).
    • Disconnect: Traction Control/Ambient Lighting Switch C2304 (Fusion/Milan).
    • For Fusion or Milan,  measure the resistance between traction control/ambient lighting switch C2304 pin-7 and pin-1, component side, while pressing and releasing the traction control switch.
    • For MKZ,  measure the resistance between FCIM C2402 pin-7 and pin-8, component side, while pressing and releasing the switch.
    • Is the resistance less than 5 ohms with the switch pressed and greater than 10,000 ohms with the switch released?
  3. M3 CHECK THE TRACTION CONTROL SWITCH GROUND CIRCUIT FOR AN OPEN
    • For Fusion or Milan,  measure the resistance between traction control/ambient lighting switch C2304-1, circuit GD116 (BK/VT), harness side and ground.
      Fig 1: Measuring Resistance Between Traction Control/Ambient Lighting Switch C2304-1, Circuit GD116 (BK/VT) And Ground (Fusion Or Milan)
      G07784295Courtesy of FORD MOTOR CO.
    • For MKZ,  measure the resistance between FCIM C2402-8, circuit GD116 (BK/VT), harness side and ground.
      Fig 2: Measuring Resistance Between FCIM C2402-8, Circuit GD116 (BK/VT) And Ground (MKZ)
      G07784296Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?
    • Yes  : GO to M4.
    • No  : REPAIR circuit GD116 (BK/VT). TEST the system for normal operation.
  4. M4 CHECK THE TRACTION CONTROL SWITCH CONTROL CIRCUIT FOR AN OPEN
    • Disconnect: IPC C220.
    • For Fusion or Milan,  measure the resistance between traction control/ambient lighting switch C2304-7, circuit CCA15 (YE/GY), harness side and IPC C220-18, circuit CCA15 (YE/GY), harness side.

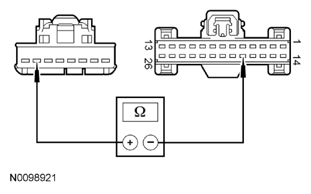

      Fig 3: Checking Traction Control Switch Control Circuit For Open (Fusion Or Milan)
      G07784297Courtesy of FORD MOTOR CO.
    • For MKZ,  measure the resistance between FCIM C2402-7, circuit CCA15 (YE/GY), harness side and IPC C220-18, circuit CCA15 (YE/GY), harness side.

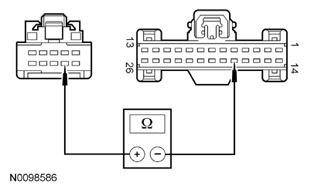

      Fig 4: Checking Traction Control Switch Control Circuit For Open (MKZ)
      G07784298Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?
    • Yes  : GO to M5.
    • No  : REPAIR circuit CCA15 (YE/GY). TEST the system for normal operation.
  5. M5 CHECK THE TRACTION CONTROL SWITCH CONTROL CIRCUIT FOR A SHORT TO GROUND
    • For Fusion or Milan,  measure the resistance between traction control/ambient lighting switch C2304-7, circuit CCA15 (YE/GY), harness side and ground.
      Fig 5: Measuring Resistance Between Traction Control/Ambient Lighting Switch C2304-7, Circuit CCA15 (YE/GY) And Ground (Fusion Or Milan)
      G07784299Courtesy of FORD MOTOR CO.
    • For MKZ,  measure the resistance between FCIM C2402-7, circuit CCA15 (YE/GY), harness side and ground.
      Fig 6: Measuring Resistance Between FCIM C2402-7, Circuit CCA15 (YE/GY) And Ground (MKZ)
      G07784300Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 10,000 ohms?
    • Yes  : GO to M6.
    • No  : REPAIR circuit CCA15 (YE/GY). TEST the system for normal operation.
  6. M6 CHECK FOR CORRECT IPC OPERATION
    • Ignition OFF.
    • Check IPC C220 for:
      • corrosion.
      • pushed-out pins.
      • spread terminals.
    • Connect: IPC C220.
    • Make sure the connector is seated correctly, then operate the system and verify the concern is still present.
    • Is the concern still present?
