Rain Sensor: Notes

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Vehicle without Headlamp Control Module 2 (HCM-2) shown in illustration, vehicle with HCM-2 similar.

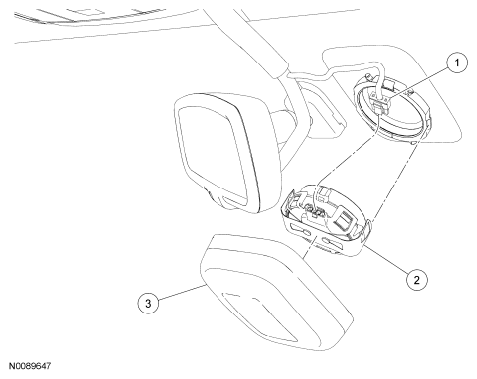

Fig 1: Identifying Rain Sensor Components
G06135524Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 - Electrical connector (part of 17C712)
2 17D547 Rain sensor
3 17D550 Rain sensor cover
