Windshield Wipers
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

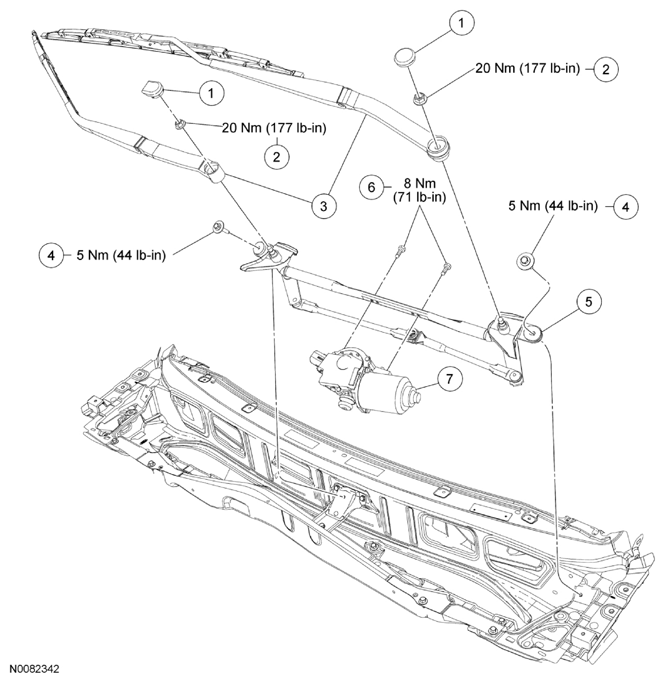

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 17C526 | Wiper pivot arm caps (2 required) |
| 2 | W520403 | Wiper pivot arm nuts (2 required) |
| 3 | 17526 | Wiper pivot arm assembly |
| 4 | W701121 | Windshield wiper mounting arm and pivot shaft assembly bolts (2 required) |
| 5 | 17566 | Windshield wiper mounting arm and pivot shaft assembly |
| 6 | - | Wiper motor-to-wiper mounting arm bolts (part of 17508) (2 required) |
| 7 | 17508 | Wiper motor assembly |
