Pinpoint Test J: The A/C Is Always On: Testing

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Before carrying out the following test, diagnose any PCM or instrument cluster DTCs.
NOTE: When disconnecting and reconnecting the pressure transducer electrical connector, make sure that the connetor-locking device is in place and that the locking device and connector are correctly and fully seated.
  1. J1 CHECK THE A/C PRESSURE PCM PID
    • Key in ON position.
    • Enter the following diagnostic mode on the scan tool: A/C Pressure PCM PID.
    • With the manifold gauge set connected, compare the pressure readings of the manifold gauge set and the A/C pressure PID.
    • Are the pressure values of the manifold gauge set and the A/C pressure PID similar?
    • Yes  : GO to J2.
    • No  : INSTALL a new A/C pressure transducer. TEST the system for normal operation.
  2. J2 CHECK THE A/C EVAPORATOR TEMPERATURE PID
    • Allow the vehicle exterior and interior to stabilize to an ambient temperature above 16°C (60°F).
    • Enter the following diagnostic mode on the scan tool: A/C Evaporator Discharge Temperature PCM PID.
    • Does the A/C evaporator discharge temperature PID read similar to the ambient temperature?
    • Yes  : GO to J3.
    • No  : INSTALL a new A/C evaporator discharge temperature sensor. TEST the system for normal operation.
  3. J3 CHECK A/C REQUEST PID WITH THE A/C OFF
    • Enter the following diagnostic mode on the scan tool: PCM A/C REQUEST PID.
    • Does the PCM A/C REQUEST PID read ON?
    • Yes  : EATC, GO to J4.

      EMTC, GO to  J5.

    • No  : GO to  J7.
  4. J4 CHECK A/C SWITCH PID WITH THE A/C OFF
    • Enter the following diagnostic mode on the scan tool: PCM A/C SWITCH PID.
    • Does the PCM A/C SWITCH PID read ON?
    • Yes  : INSTALL a new EATC module. TEST the system for normal operation.
    • No  : INSTALL a new PCM. TEST the system for normal operation.
  5. J5 CHECK EMTC A/C REQUEST OUTPUT
    • Key in OFF position.
    • Disconnect: IC C220.
    • Key in ON position.
    • Select the OFF position on the EMTC module.
    • Measure the resistance between IC C220-10, circuit 1424 (TN/BK) and ground.

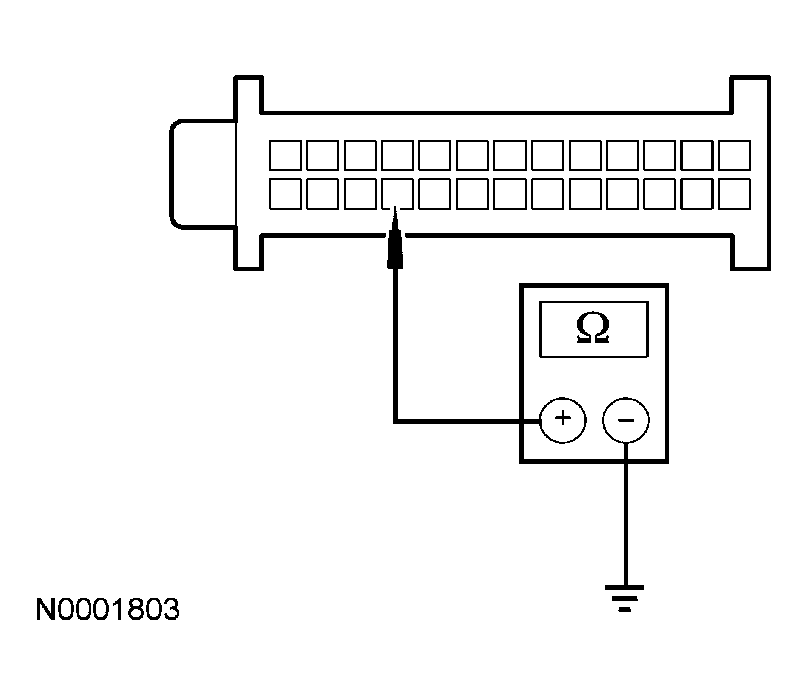

      Fig 1: Measuring Resistance Between IC C220-10, Circuit 1424 (TN/BK) And Ground
      G03992240Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?
    • Yes  : GO to J6.
    • No  : INSTALL a new PCM. TEST the system for normal operation.
  6. J6 CHECK CIRCUIT 1424 (TN/BK) FOR A SHORT TO GROUND
    • Key in OFF position.
    • Disconnect: EMTC C294a.
    • Key in ON position.
    • Measure the resistance between IC C220-10, circuit 1424 (TN/BK) and ground.
      Fig 2: Measuring Resistance Between IC C220-10, Circuit 1424 (TN/BK) And Ground
      G03992240Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 10,000 ohms?
    • Yes  : INSTALL a new EMTC module. TEST the system for normal operation.
    • No  : REPAIR circuit 1424 (TN/BK) for a short to ground. TEST the system for normal operation.
  7. J7 CHECK A/C CLUTCH RELAY PID WITH THE A/C OFF
    • Enter the following diagnostic mode on the scan tool: PCM A/C CLUTCH RELAY PID.
    • Does the PCM A/C CLUTCH RELAY PID read ON?
  8. J8 CHECK FOR VOLTAGE TO THE A/C COMPRESSOR CLUTCH FIELD COIL
    • Key in OFF position.
    • Disconnect: A/C Compressor Clutch Field Coil C100.
    • Key in ON position.
    • Select the OFF position on the EMTC module.
    • Measure the voltage between the A/C compressor clutch field coil C100-1, circuit 1810 (LG/OG) and ground.
      Fig 3: Measuring Voltage Between A/C Compressor Clutch Field Coil C100-1, Circuit 1810 (LG/OG) And Ground
      G04002936Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?
  9. J9 CHECK CIRCUIT 1810 (LG/OG) FOR A SHORT TO VOLTAGE
    • Key in OFF position.
    • Disconnect: A/C Clutch Relay.
    • Key in ON position.
    • Measure the voltage between the A/C compressor clutch field coil C100-1, circuit 1810 (LG/OG) and ground.
      Fig 4: Measuring Voltage Between A/C Compressor Clutch Field Coil C100-1, Circuit 1810 (LG/OG) And Ground
      G04002936Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?
    • Yes  : REPAIR circuit 1810 (LG/OG) for a short to voltage. TEST the system for normal operation.
    • No  : INSTALL a new A/C clutch relay. Check the A/C clutch diode. INSTALL a new diode if necessary. TEST the system for normal operation.
