Front Brake Pads: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 or PM-1-C (US); CPM-1 or CPM-1-C (Canada) |
ESA-M6C25-A or WSS-M6C62-A |
| Silicone Brake Caliper Grease and Dielectric Compound XG-3-A |
ESE-M1C171-A |
NOTE:

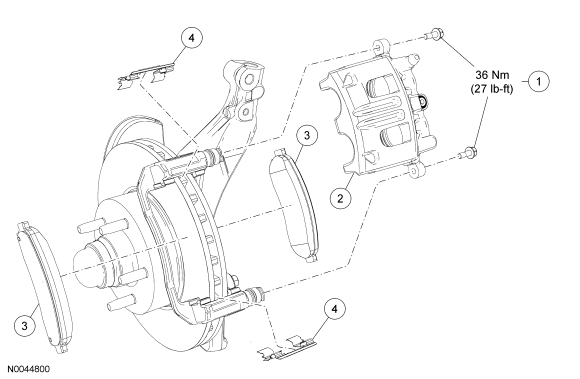

Rear wheel drive (RWD) shown, four wheel drive (4WD) similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 2B296 | Brake caliper pin bolts (2 required) |
| 2 | 2B120 | Brake caliper |
| 3 | 2001 | Brake pads (2 required) |
| 4 | - | Brake pad clips (2 required) (part of 2001) |
