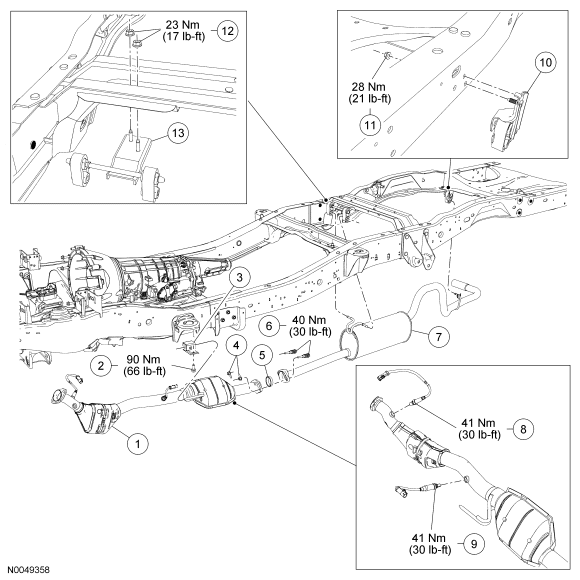

Exhaust System - Exploded View
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Exhaust system will vary by wheelbase.
NOTE:
Vehicle body removed for clarity.
| Item | Part Number | Description |
|---|---|---|
| 1 | 5E212 | Exhaust downpipe |
| 2 | - | Transmission mount and isolator-to-transmission bolt |
| 3 | 5E269 | Exhaust isolator |
| 4 | - | Exhaust downpipe-to-muffler and tailpipe assembly flag nuts |
| 5 | 5E241 | Exhaust downpipe-to-muffler and tailpipe assembly gasket |
| 6 | - | Exhaust downpipe-to-muffler and tailpipe assembly bolts |
| 7 | 5K214 | Muffler and tailpipe assembly |
| 8 | - | Heated oxygen sensor (HO2S) |
| 9 | 9G444 | Catalyst monitor sensor |
| 10 | 5260 | Tailpipe bracket and isolator assembly |
| 11 | - | Tailpipe bracket and isolator assembly nut |
| 12 | - | Muffler bracket and isolators assembly nuts |
| 13 | 5A246 | Muffler bracket and isolators assembly |

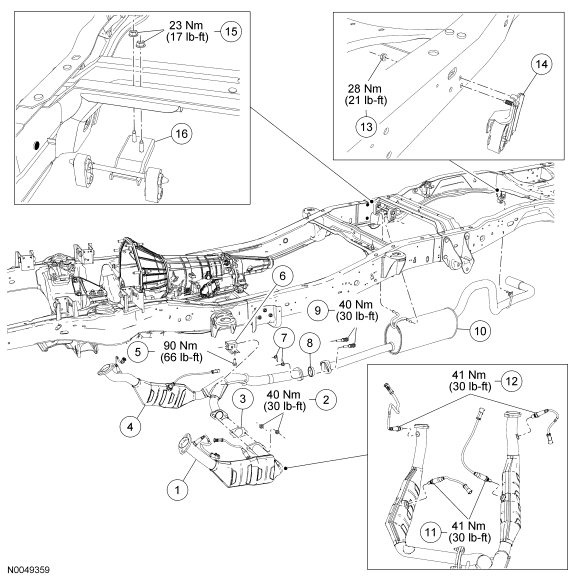

NOTE:
3.0L shown, 4.0L similar.
NOTE:
Exhaust system will vary by wheelbase.
NOTE:
Vehicle body removed for clarity.
| Item | Part Number | Description |
|---|---|---|
| 1 | 5E212 | LH side of exhaust Y-pipe |
| 2 | - | LH side of exhaust Y-pipe-to-RH side of exhaust Y-pipe nuts |
| 3 | 5E212 | LH side of exhaust Y-pipe-to-RH side of exhaust Y-pipe gasket |
| 4 | 5F250 | RH side of exhaust Y-pipe |
| 5 | - | Transmission mount and isolator-to-transmission bolt |
| 6 | 5E269 | Exhaust isolator |
| 7 | - | RH side of exhaust Y-pipe-to-muffler and tailpipe assembly flag nuts |
| 8 | 5E241 | RH side of exhaust Y-pipe-to-muffler and tailpipe assembly gasket |
| 9 | 5G215 | RH side of exhaust Y-pipe-to-muffler and tailpipe assembly bolts |
| 10 | 5K214 | Muffler and tailpipe assembly |
| 11 | 9G444 | Catalyst monitor sensors |
| 12 | - | Heated oxygen sensors (HO2S) |
| 13 | - | Tailpipe bracket and isolator assembly nut |
| 14 | 5260 | Tailpipe bracket and isolator assembly |
| 15 | - | Muffler bracket and isolators assembly nuts |
| 16 | 5A246 | Muffler bracket and isolators assembly |
- For additional information, refer to the procedures in this article.
