Transmission Selector Lever: Notes

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

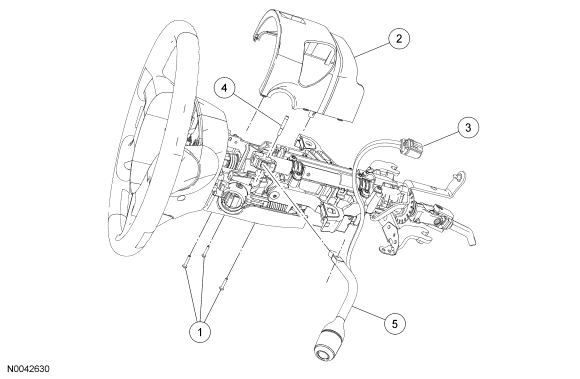

Fig 1: Identifying Transmission Selector Lever
GF0010409Courtesy of FORD MOTOR CO.
Item Part Number Description
1 391727_S Steering column shroud screws
2 3530-A Steering column upper shroud
3 - Transmission control switch electrical connector
4 7W441-B Transmission selector lever pin
5 7202-B Transmission selector lever
