Occupant Classification Sensor: Notes

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
	Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS)	software with appropriate hardware, or equivalent scan tool

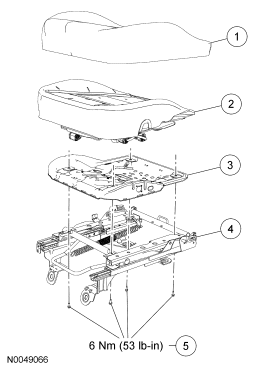

Fig 1: Seat with a Production Occupant Classification Sensor With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	62900	Seat cushion trim cover
2	-	Seat cushion foam pad
3	-	Pin-type retainers
4	-	Occupant classification sensor (OCS) system (bladder, hose with pressure sensor, occupant classification system module [OCSM] and seat wiring harness)
5	63101	Seat cushion frame
6	-	Seat track assembly
7		Seat track-to-cushion frame bolts

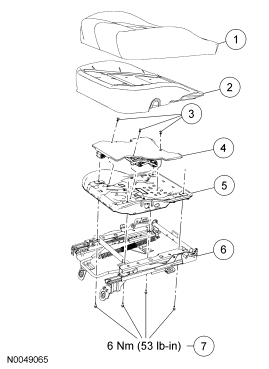

Fig 2: Seat with a Service Kit Occupant Classification Sensor With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	62900	Seat cushion trim cover
2	603B02	Occupant classification sensor (OCS) system service kit (foam pad, bladder, hose with pressure sensor, OCSM and wiring harness)
3	63101	Seat cushion frame
4	-	Seat track assembly
5	-	Seat track-to-cushion frame bolts
