Restraints Control Module (RCM): Notes

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
	Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS)	software with appropriate hardware, or equivalent scan tool

NOTE: Vehicle with consolette tray shown.

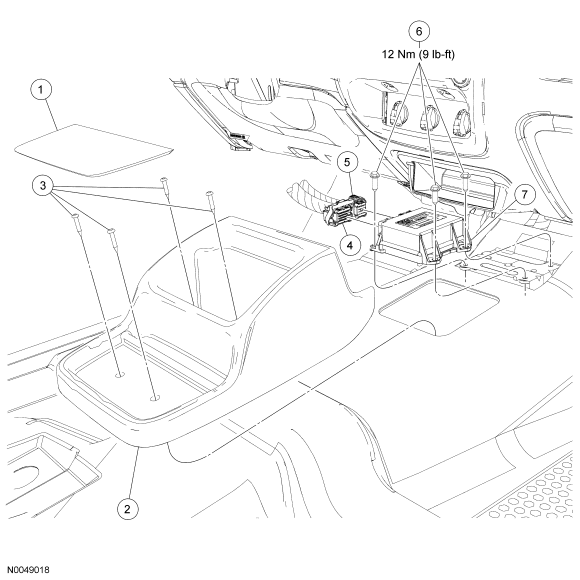

Fig 1: Restraints Control Module (RCM) With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Consolette tray mat (part of 045A36)
2	045A36	Consolette tray
3	-	Consolette tray screws (4 required) (part of 045A36)
4	-	Restraints control module (RCM) large electrical connector (part of 14401)
5	-	RCM small electrical connector (part of 14401)
6	W701963	RCM bolts (3 required)
7	14B321	RCM
