Joint Connector

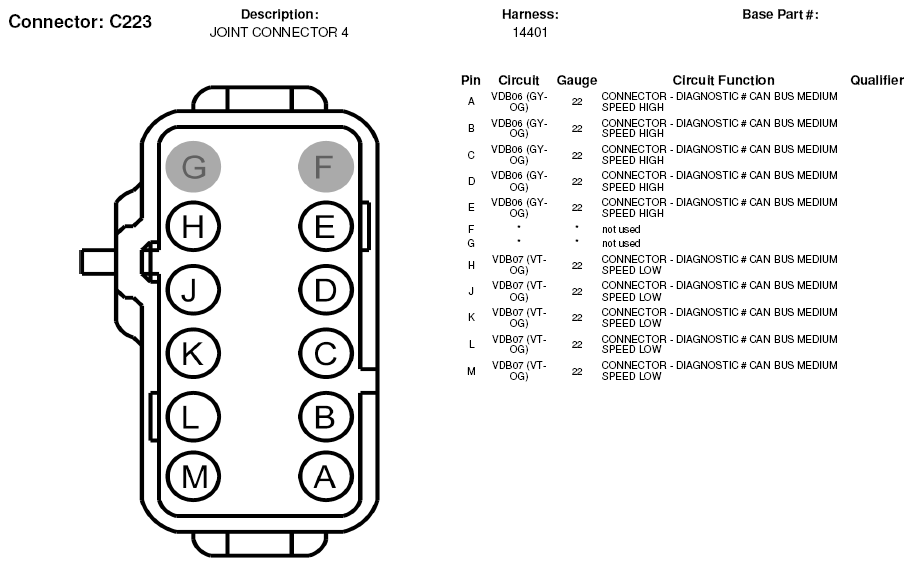

Fig 1: Joint Connector 4 Connector End View (C223)
G05182571Courtesy of FORD MOTOR CO.

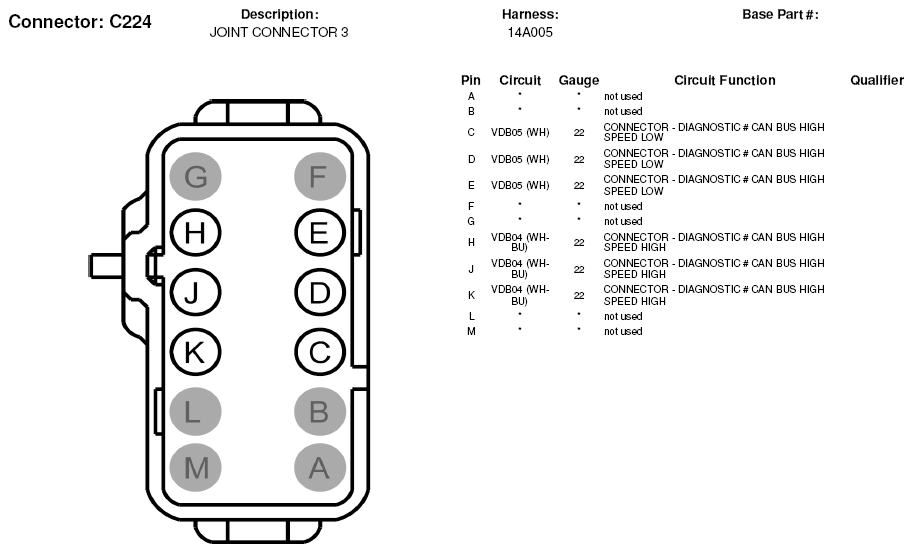

Fig 2: Joint Connector 3 Connector End View (C224)
G05182572Courtesy of FORD MOTOR CO.

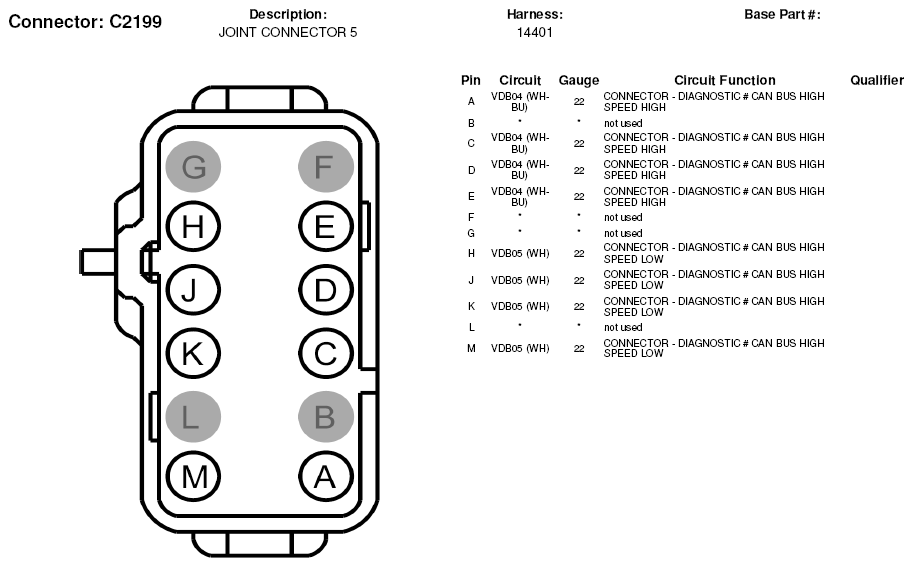

Fig 3: Joint Connector 5 Connector End View (C2199)
G05182732Courtesy of FORD MOTOR CO.

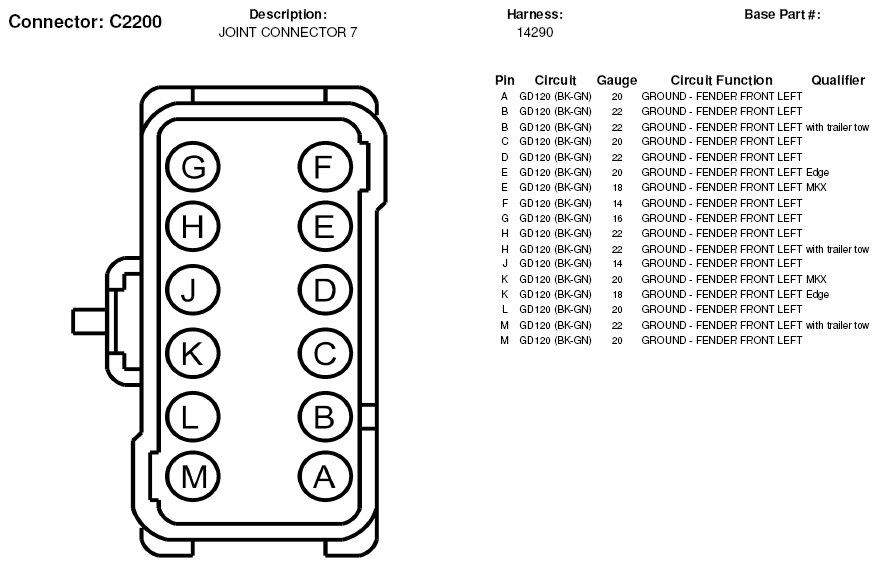

Fig 4: Joint Connector 7 Connector End View (C2200)
G05182733Courtesy of FORD MOTOR CO.

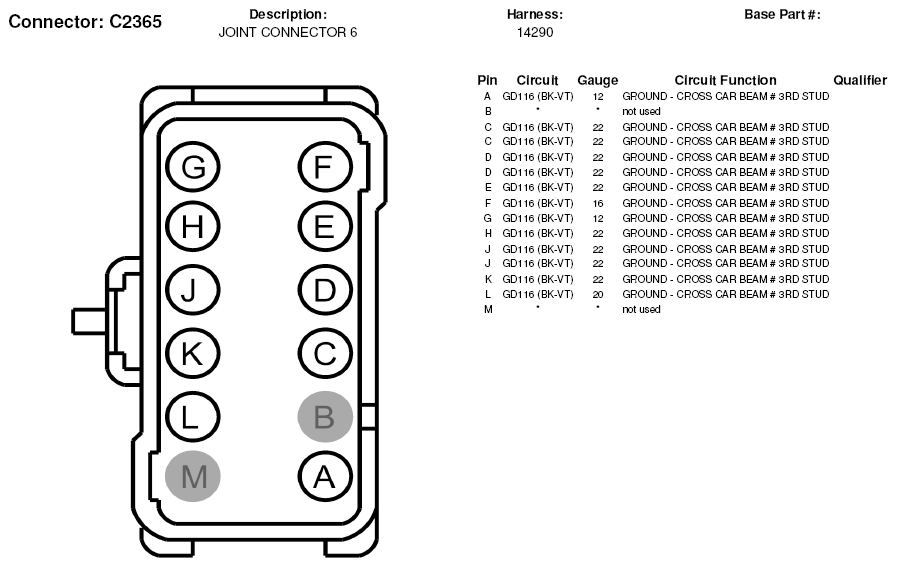

Fig 5: Joint Connector 6 Connector End View (C2365)
G05182749Courtesy of FORD MOTOR CO.

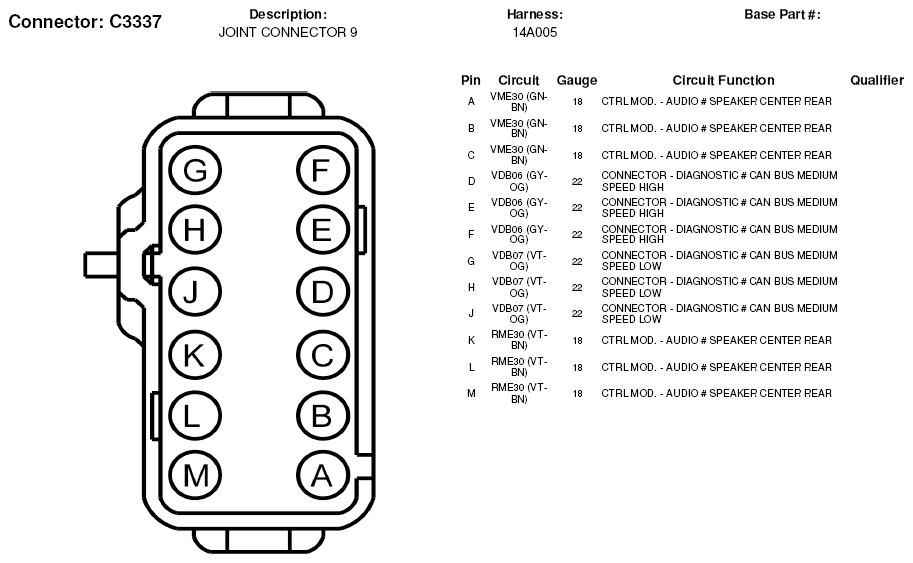

Fig 6: Joint Connector 9 Connector End View (C3337)
G05182800Courtesy of FORD MOTOR CO.

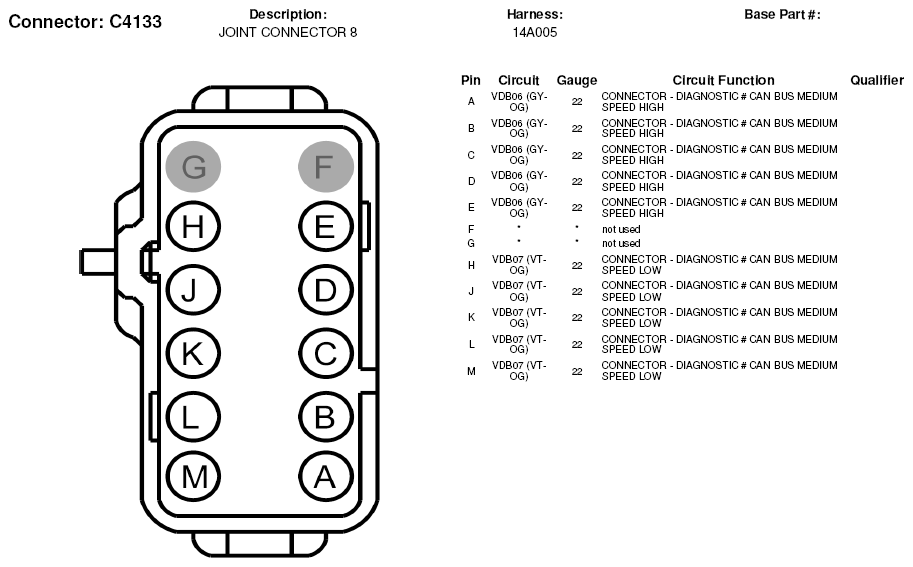

Fig 7: Joint Connector 8 Connector End View (C4133)
G05182806Courtesy of FORD MOTOR CO.

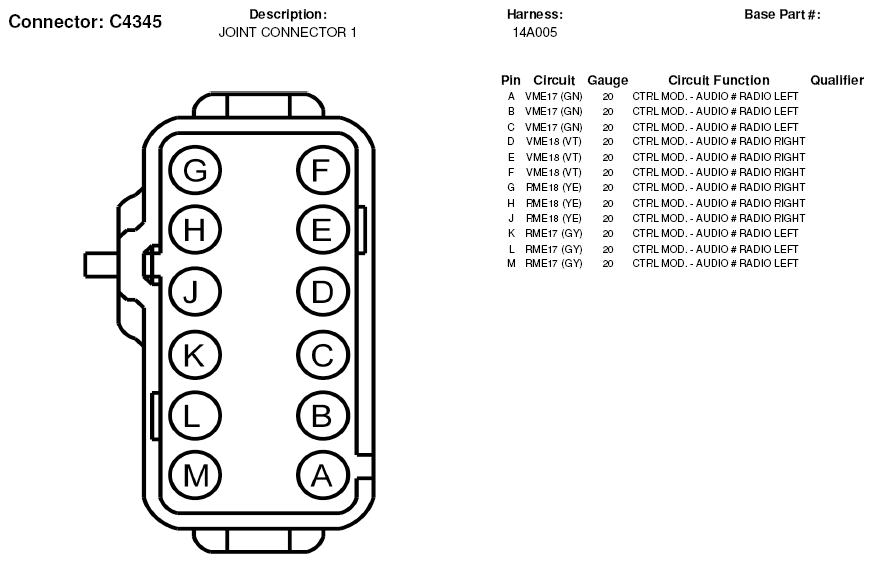

Fig 8: Joint Connector 1 Connector End View (C4345)
G05182825Courtesy of FORD MOTOR CO.

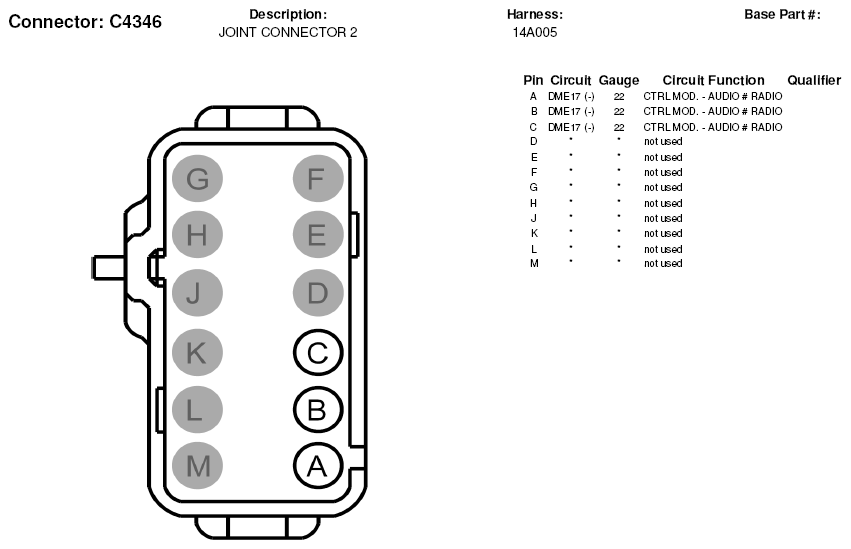

Fig 9: Joint Connector 2 Connector End View (C4346)
G05182826Courtesy of FORD MOTOR CO.
