Roof Opening Panel Switch Connector

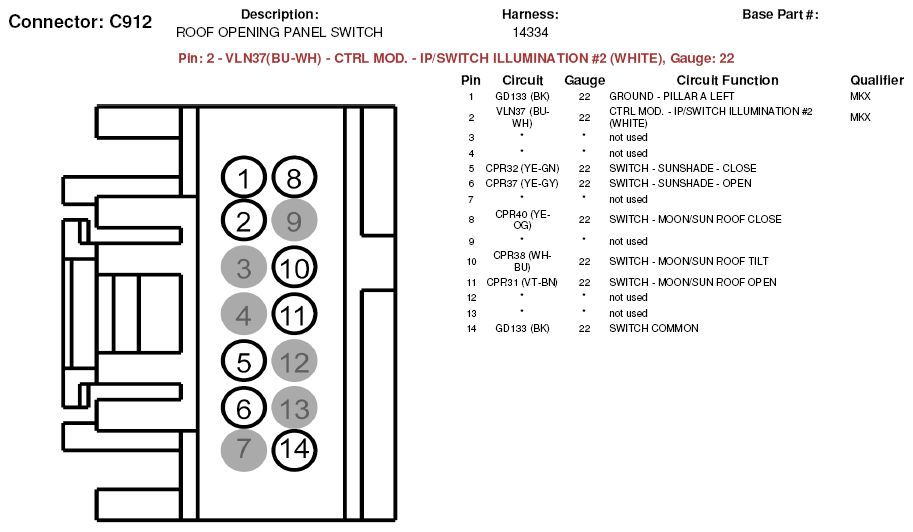

Fig 1: Roof Opening Panel Switch Connector End View (C912)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
