Side Impact Sensor Connectors

Fig 1: Side Impact Sensor Connector End View (C3209)
G05182772Courtesy of FORD MOTOR CO.

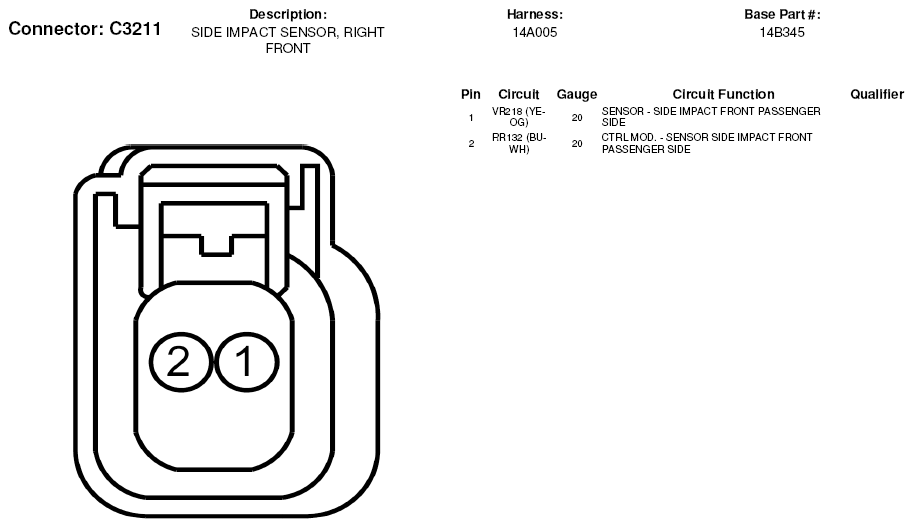

Fig 2: Side Impact Sensor Connector End View (C3211)
G05182773Courtesy of FORD MOTOR CO.

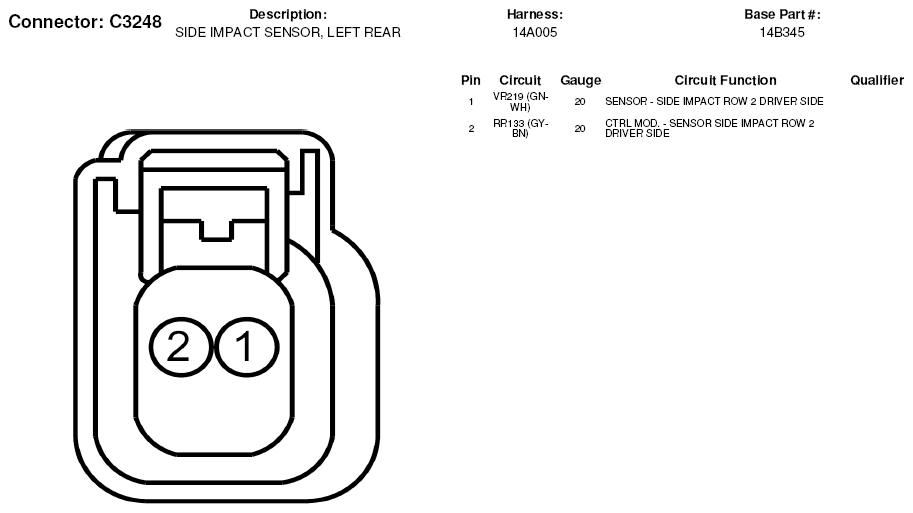

Fig 3: Side Impact Sensor Connector End View (C3248)
G05182777Courtesy of FORD MOTOR CO.

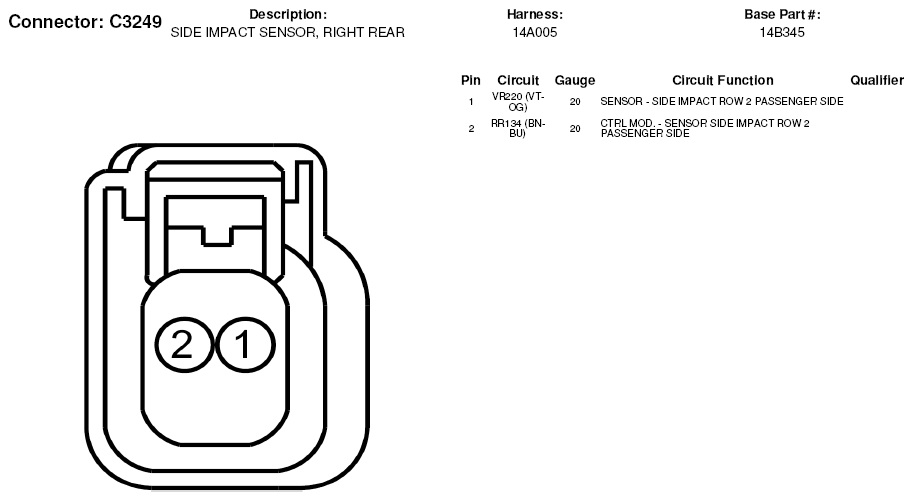

Fig 4: Side Impact Sensor Connector End View (C3249)
G05182778Courtesy of FORD MOTOR CO.
