Steering Wheel Switch Connector

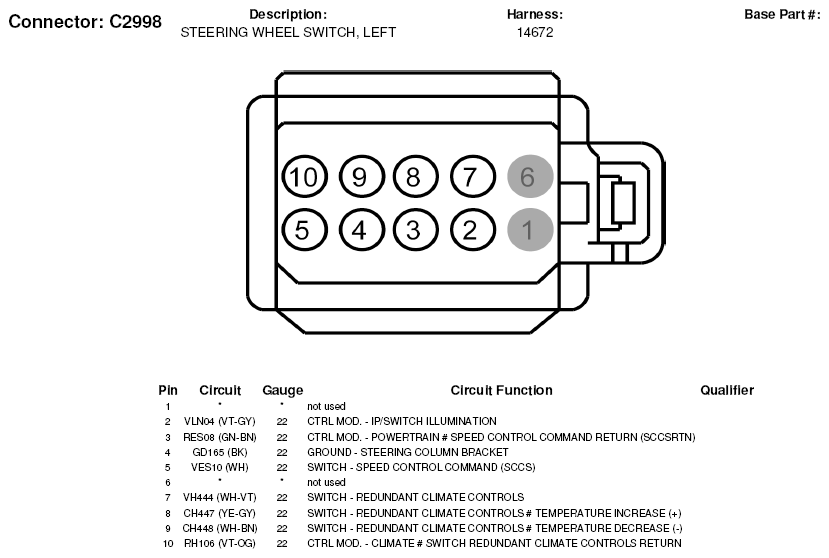

Fig 1: Steering Wheel Switch Connector End View (C2998)
G05182752Courtesy of FORD MOTOR CO.

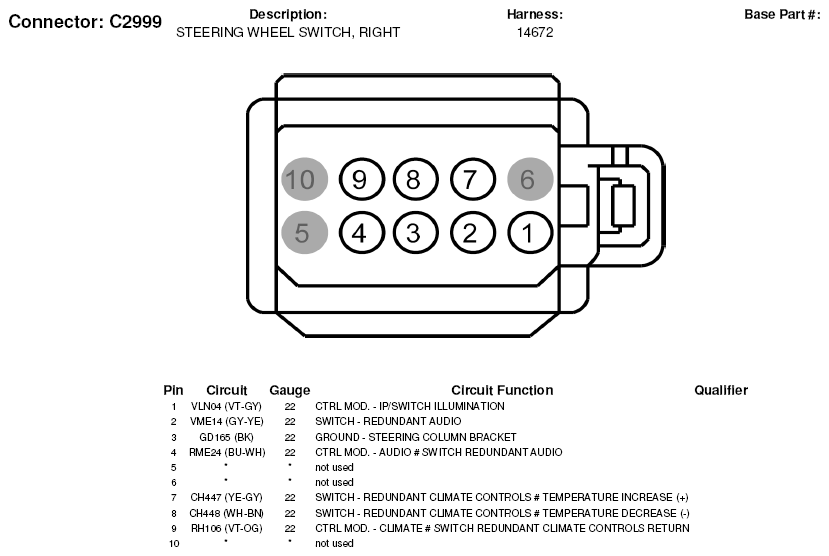

Fig 2: Steering Wheel Switch Connector End View (C2999)
G05182753Courtesy of FORD MOTOR CO.
