104-Pin PCM

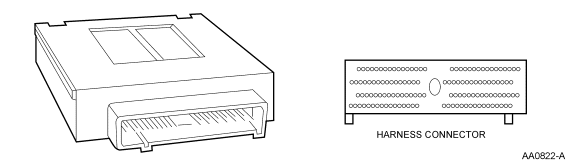

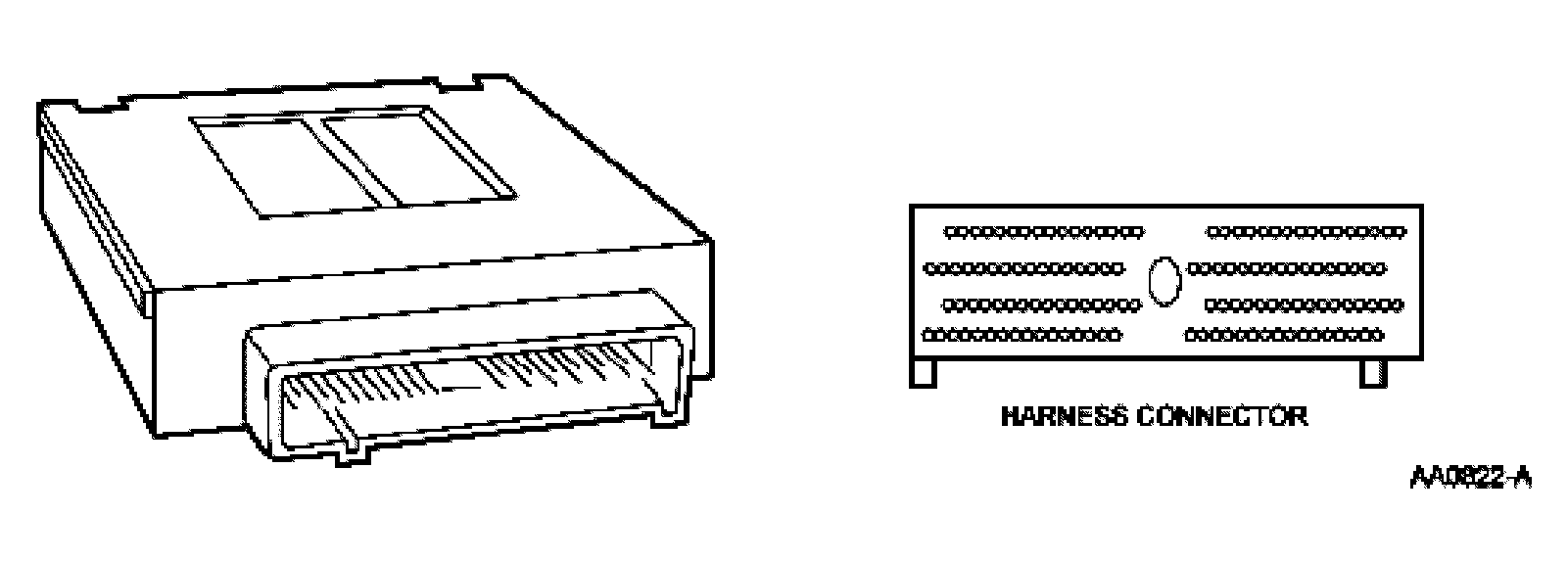

Courtesy of FORD MOTOR CO. 104-PIN PCM POWER AND GROUNDS
| Function |
Description |
Connector/Pin |
| VPWR |
Voltage input to module |
71,97 |
| PWRGND |
Power ground |
24,25,51,76,77,103 |
| CSEGND |
Case ground |
25 |
| SIGRTN |
Signal return |
91 |
| VREF |
5.0-volt reference |
90 |
| KAPWR |
Keep alive power |
55 |
