Sony® Sound
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

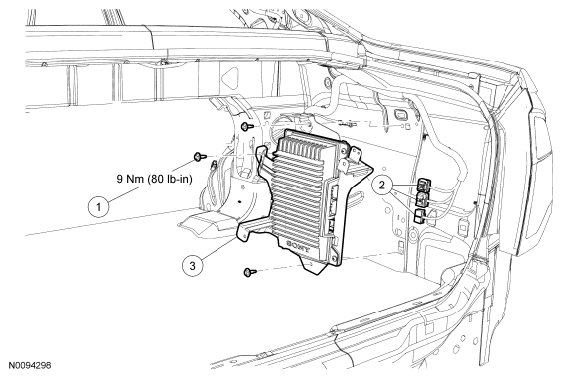

Fig 1: Audio Digital Signal Processing (DSP) Module Replacement Components (Sony(R) Sound) With Torque Specifications
ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | W505423-S | Audio Digital Signal Processing (DSP) module bolts (3 required) |
| 2 | - | Audio DSP module electrical connectors (part of 14A005) |
| 3 | 18B849 | Audio DSP module |
