Glove Compartment: Notes

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

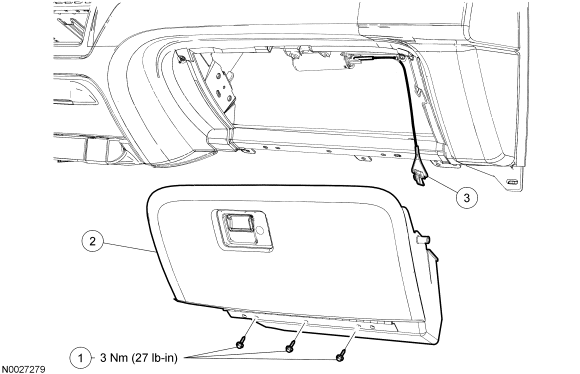

Fig 1: Removing/Installing Glove Compartment With Torque Specifications
GF0018628Courtesy of FORD MOTOR CO.
Item Part Number Description
1 385754 Glove compartment hinge bolts (3 required)
2 54060T10 Glove compartment door
3 06102 Glove compartment assist cable
